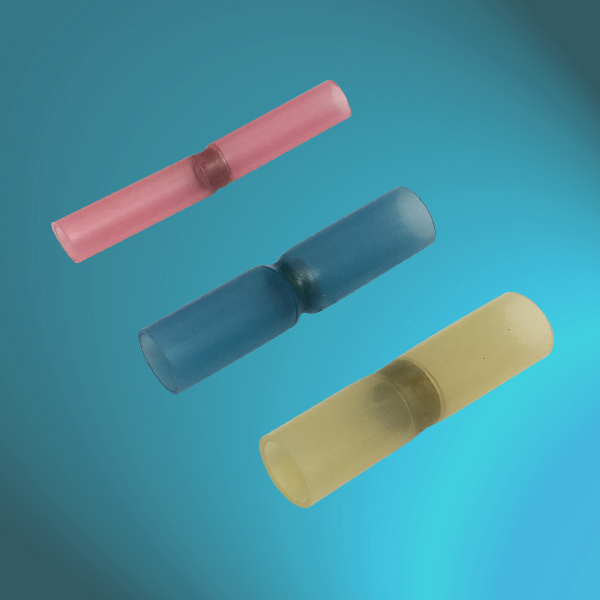

Heat Shrink Solderable Butts-IP68 Waterproof, High Tensile Strength

MATERIAL

HEAT-SHRINKABLE POLYOLEFIN TUBE; LEAD-FREE TIN SOLDER SLEEVE; MELTABLE THERMALLY STABILIZED THERMOPLASTIC ADHESIVE RING.

WORKING TEMP.

-55℃ ~ 125℃

MIN. SHRINK TEMP.

80℃

MIN. MELTING TEMP.

138℃

FULLY MELTING TEMP.

160℃

DIELECTRIC STRENGTH

1kV

STANDARD

IP68 & RoHS

DESCRIPTION

SHRINK RATIO 2:1

MELTABLE THERMALLY STABILIZED THERMOPLASTIC PROVIDES EXCELLENT WATERPROOF PROPERTY.

HIGH ELASTICITY KEEPS STEADY PERFORMANCE.

TRANSPARENT SLEEVE PROVIDES PRECISE INSPECTION.

USER-FRIENDLY SOLDERING PROCESS.

EASE CODE

DIMENSION

mm

WIRE SIZE

mm

WIRE RANGE

A (min.)

L (min.)

B (min.)

C (min.)

mm²
(A.W.G)

TM-HS-SB-0.5H

1.7

26.0

1.0

0.76

0.25-0.5
(26-24)

TM-HS-SB-1.5H

2.7

40.0

1.4

1.2

0.5-1.5
(22-16)

TM-HS-SB-2.5H

4.5

40.0

2.3

2.0

1.5-2.5
(16-14)

TM-HS-SB-6.0H

6.0

40.0

3.7

3.4

4.0-6.0
(12-10)
