CBE-BA
ES
8538900000
| Quantity: | |
|---|---|

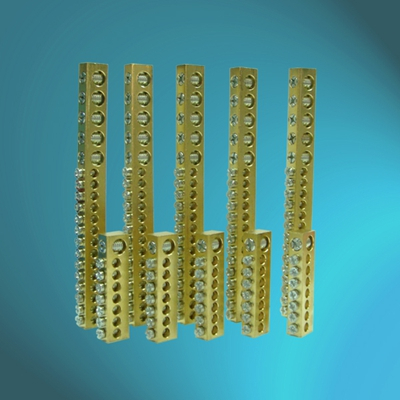

Brass Earthing Bars
We can customize the product according customers' various requirements:
Standard Brass width x high: 6.5 x 9 mm, 6.5 x 10mm or 6.5 x 12mm, 8 x 12mm. Other sizes can be customized.
brass hole dia(Φ): 4.5mm or any size
Screw size : M4 x 8 or any size
SPECIFICATIONS (STANDARD SIZES) | ||||||
HOUSING: | BRASS | |||||
SCREWS: | GALVANISED | |||||
STANDARD: | CE | |||||
FEATURE | EARTHING CONNECTION | |||||
EASE CODE | SPEC. | DIMENSIONS (MM) | SCREW SIZE | |||
W * h-hole | L | M | H | Φ | ||
CBE-BA-01 | 6 * 9~6/1 | 45.2 | 6.5 | 10 | 4.5 | M4.0 |
CBE-BA-02 | 6 * 9~8/1 | 57.6 | 6.5 | 10 | 4.5 | M4.0 |
CBE-BA-03 | 6 * 9~10/1 | 70.0 | 6.5 | 10 | 4.5 | M4.0 |
CBE-BA-04 | 6 * 9~12/1 | 82.4 | 6.5 | 10 | 4.5 | M4.0 |
CBE-BA-20 | 6 * 9~6/2 | 52.8 | 6.5 | 10 | 4.5 | M4.0 |
CBE-BA-21 | 6 * 9~8/2 | 65.2 | 6.5 | 10 | 4.5 | M4.0 |
CBE-BA-22 | 6 * 9~10/2 | 77.6 | 6.5 | 10 | 4.5 | M4.0 |
CBE-BA-23 | 6 * 9~12/2 | 90.0 | 6.5 | 10 | 4.5 | M4.0 |
