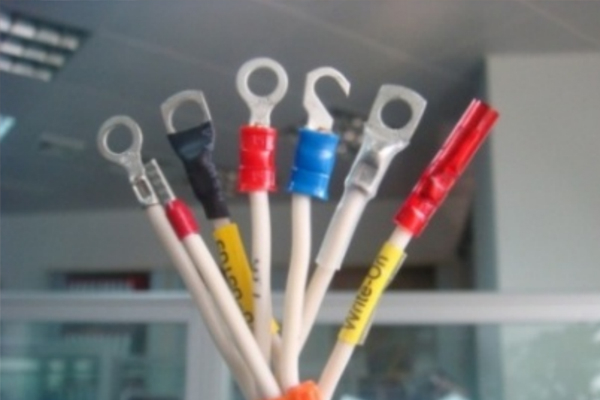

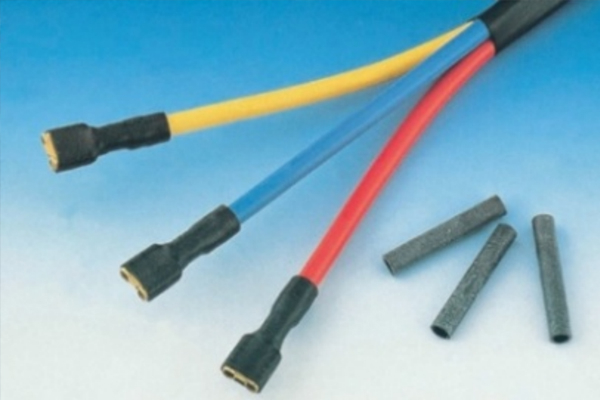

Pre-insulated Terminals: the Wire Range Standard Cross-reference
| Wire Range Standard Cross-reference Sheet | |||||||
| Standard | JIS ） | DIN | GB | AWG | |||
| Wire Range (AWG) | Wire Range (mm²) | Wire Range (AWG) | Wire Range (mm²) | Wire Range (AWG) | Wire Range (mm²) | GB.WE | |
| 0.5 | 0.2-0.5 | 0.5 | 0.1-0.4 | 0.5 | 0.1-0.5 | 0.1-0.5 | 26-22 |
| 1.25 | 0.25-1.63 | 1.25 | 0.25-1.65 | 1 | 0.5-1.5 | 0.5-1.5 | 22-16 |
| 2 | 1.04-2.63 | 2 | 1.04-2.63 | 2.5 | 1.5-2.5 | 2.5 | 16-14 |
| 3.5 | 2.63-4.60 | 3.5 | 2.63-4.6 |
|
| 4 | 14-12 |
| 5.5 | 2.63-6.64 | 5.5 | 2.63-6.64 | 6 | 4.0-6.0 | 6 | 12-10 |
| 8 | 6.64-10.52 | 8 | 6.64-10.52 | 10 | 10 | 10 | 8 |
| 14 | 10.52-16.78 | 14 | 10.52-16.78 | 16 | 16 | 16 | 6 |
| 22 | 16.78-26.66 | 22 | 16.78-26.66 | 25 | 25 | 25 | 4 |
| 38 | 26.66-42.42 | 38 | 26.66-42.42 | 35 | 35 | 35 | 2 |
| 50 | 38.5-59.7 |
| 38.5-59.7 | 50 | 50 | 50 | 1 |
| 60 | 42.42-60.57 | 60 | 42.42-60.57 |
|
| 60 | 1/0 |
| 70 | 60.57-76.28 | 70 | 60.57-76.58 | 70 | 70 | 70 | 2/0 |
| 80 | 76.28-96.30 | 80 | 76.28-96.30 | 95 | 95 | 95 | 3/0 |
| 100 | 96.30-117.2 | 100 | 96.30-117.20 | 120 | 120 | 120 | 4/0 |
| 150 | 117.2-152.05 | 150 | 117.20-152.05 | 150 | 150 | 150 | 250-300MCM |
| 185 | 152.05-192.6 | 180 | 152.05-192.6 | 185 | 185 | 185 | 300-350MCM |
| 200 | 192.6-242.27 | 200 | 192.6-242.27 | 240 | 240 | 240 | 400-500MCM |
| 325 | 242.27-352.0 | 325 | 242.27-352.0 | 300 | 300 | 300 | 500-600MCM |
| Stud size | #2 | #3 | #4 | #6 | #8 | #10 | 1/4 | 5/16 | 3/8 |
| in. | .087 | .106 | .126 | .146 | .169 | .209 | .252 | .331 | .413 |
| mm | 2.2 | 2.7 | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 8.4 | 10.5 |
|
|
|
|
|
|
|
|
|
|
|
| Stud size | 7/16 | 1/2 | 9/16 | 5/8 | 11/16 | 3/4 | 7/8 | 15/16 | 1'' |
| in. | .453 | .512 | .591 | .669 | .748 | .827 | .906 | .984 | 1.102 |
| mm | 11.5 | 13.0 | 15.0 | 17.0 | 19.0 | 21.0 | 23.0 | 25.0 | 28.0 |
