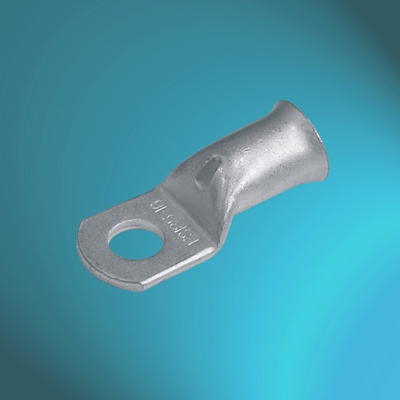

ES SPECIFICATION COPPER TUBE TERMINALS
SPECIFICATIONS
MATERIAL: HIGH CONDUCTIVITY COPPER TO BS2871
PURITY: >99.9%
COATING: TIN
FEATURE: FLARED ENTRY
EASE CODE | SIZE | STUD | Φ | D | d | W | L |
(mm)2 | |||||||
TU-FL-10/5 | 10 | 5 | 5.3 | 6.6 | 4.5 | 11.0 | 30.0 |
TU-FL-10-6 | 6 | 6.5 | 6.6 | 11.0 | 30.0 | ||
TU-FL-10-8 | 8 | 8.3 | 6.6 | 12.5 | 30.0 | ||
TU-FL-10-10 | 10 | 10.3 | 6.9 | 16.0 | 34.1 | ||
TU-FL-10-12 | 12 | 12.7 | 6.9 | 18.0 | 34.1 | ||
TU-FL-16-5 | 16 | 5 | 5.3 | 7.5 | 5.5 | 11.0 | 30.7 |
TU-FL-16-6 | 6 | 6.3 | 7.5 | 11.0 | 30.7 | ||
TU-FL-16-8 | 8 | 8.3 | 7.5 | 12.5 | 30.7 | ||
TU-FL-16-10 | 10 | 10.3 | 7.5 | 16.0 | 35.9 | ||
TU-FL-16-12 | 12 | 12.7 | 8.1 | 18.0 | 35.9 | ||
TU-FL-25-5 | 25 | 5 | 5.3 | 9.1 | 6.7 | 13.0 | 32.2 |
TU-FL-25-6 | 6 | 6.3 | 13.0 | 32.2 | |||
TU-FL-25-8 | 8 | 8.3 | 13.0 | 32.2 | |||
TU-FL-25-10 | 10 | 10.3 | 16.0 | 36.9 | |||
TU-FL-25-12 | 12 | 12.7 | 18.0 | 36.9 | |||
TU-FL-35-5 | 35 | 5 | 5.3 | 11.0 | 8.6 | 16.0 | 37.6 |
TU-FL-35-6 | 6 | 6.3 | 16.0 | 37.6 | |||
TU-FL-35-8 | 8 | 8.3 | 16.0 | 37.6 | |||
TU-FL-35-10 | 10 | 10.3 | 17.0 | 41.5 | |||
TU-FL-35-12 | 12 | 12.7 | 18.0 | 41.5 | |||
TU-FL-50-5 | 50 | 5 | 5.3 | 12.4 | 9.5 | 18.0 | 41.0 |
TU-FL-50-6 | 6 | 6.5 | 18.0 | 41.0 | |||
TU-FL-50-8 | 8 | 8.3 | 18.0 | 41.0 | |||
TU-FL-50-10 | 10 | 10.3 | 18.0 | 44.0 | |||
TU-FL-50-12 | 12 | 12.7 | 19.0 | 44.0 | |||
TU-FL-50-14 | 14 | 14.8 | 21.0 | 52.8 | |||
TU-FL-50-16 | 16 | 16.5 | 23.0 | 52.8 | |||
TU-FL-70-5 | 70 | 5 | 5.3 | 15.0 | 12.0 | 22.5 | 52.4 |
TU-FL-70-6 | 6 | 6.3 | 22.5 | 52.4 | |||
TU-FL-70-8 | 8 | 8.3 | 22.5 | 52.4 | |||
TU-FL-70-10 | 10 | 10.3 | 22.5 | 52.4 | |||
TU-FL-70-12 | 12 | 12.7 | 22.5 | 52.4 | |||
TU-FL-70-14 | 14 | 14.8 | 22.5 | 55.0 | |||
TU-FL-70-16 | 16 | 16.5 | 24.0 | 55.0 | |||
TU-FL-95-8 | 95 | 8 | 8.3 | 17.0 | 13.4 | 25.0 | 54.7 |
TU-FL-95-10 | 10 | 10.3 | 25.0 | 54.7 | |||
TU-FL-95-12 | 12 | 12.7 | 25.0 | 54.7 | |||
TU-FL-95-14 | 14 | 14.8 | 25.0 | 58.3 | |||
TU-FL-95-16 | 16 | 16.8 | 25.0 | 58.3 | |||
TU-FL-120-8 | 120 | 8 | 8.3 | 19.0 | 15.0 | 27.5 | 60.0 |
TU-FL-120-10 | 10 | 10.3 | 27.5 | 60.0 | |||
TU-FL-120-12 | 12 | 12.7 | 27.5 | 60.0 | |||
TU-FL-120-14 | 14 | 14.8 | 27.5 | 64.0 | |||
TU-FL-120-16 | 16 | 16.5 | 27.5 | 64.0 | |||
TU-FL-150-10 | 150 | 10 | 10.3 | 21.2 | 16.5 | 30.8 | 67.0 |
TU-FL-150-12 | 12 | 12.7 | 30.8 | 67.0 | |||
TU-FL-150-14 | 14 | 14.8 | 30.8 | 67.0 | |||
TU-FL-150-16 | 16 | 16.5 | 30.8 | 71.4 | |||
TU-FL-150-20 | 20 | 20.9 | 30.8 | 71.4 | |||
TU-FL-185-10 | 185 | 10 | 10.3 | 23.0 | 19.0 | 34.0 | 73.0 |
TU-FL-185-12 | 12 | 12.7 | 34.0 | 73.0 | |||
TU-FL-185-14 | 14 | 14.8 | 34.0 | 73.0 | |||
TU-FL-185-16 | 16 | 16.5 | 34.0 | 76.2 | |||
TU-FL-185-20 | 20 | 20.9 | 34.0 | 76.2 | |||
TU-FL-240-10 | 240 | 10 | 10.3 | 26.5 | 21.0 | 38.6 | 91.4 |
TU-FL-240-12 | 12 | 12.7 | 38.6 | 91.4 | |||
TU-FL-240-14 | 14 | 14.8 | 38.6 | 91.4 | |||
TU-FL-240-16 | 16 | 16.5 | 38.6 | 91.4 | |||
TU-FL-240-20 | 20 | 20.9 | 38.6 | 91.4 | |||
TU-FL-300-12 | 300 | 12 | 12.7 | 30.0 | 24.5 | 43.8 | 98.0 |
TU-FL-300-14 | 14 | 14.8 | 43.8 | 98.0 | |||
TU-FL-300-16 | 16 | 16.5 | 43.8 | 98.0 | |||
TU-FL-300-20 | 20 | 20.9 | 43.8 | 98.0 | |||
TU-FL-400-12 | 400 | 12 | 12.7 | 35.0 | 27.0 | 49.0 | 104.0 |
TU-FL-400-14 | 14 | 14.8 | 49.0 | 104.0 | |||
TU-FL-400-16 | 16 | 16.5 | 49.0 | 104.0 | |||
TU-FL-400-20 | 20 | 20.9 | 49.0 | 104.0 |
