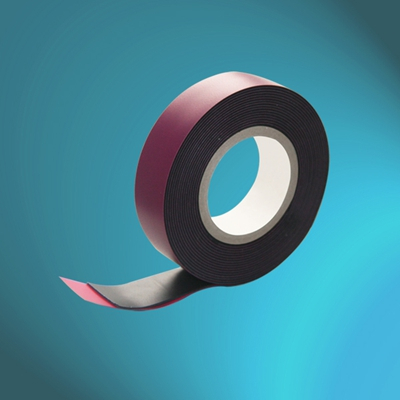

Low Voltage Rubber Insulation Tapes

MATERIAL:

ETHYLENE PROPYLENE RUBBER (EPR)

STANDARD:

UL & ASTM-D-4388

COLOUR:

IVORY OR BLACK (STANDARD)

INSULATION:

UP TO 2KV

FEATURE:

 THE RUBBER LOW VOLTAGE TAPE HAS SELF-AMALGAMATING, EFFECTIVE MOISTURE SEAL AND GOOD ELECTRICAL PROPERTIES.

APPLICATION:

FOR INSULATING OF SPLICES ON SOLID DIELECTRIC CABLE IN CONJUNCTION WITH A JACKETING TAPE, IT IS COMPATIBLE WITH ALL EXTRUDED DIELECTRIC CABLE INSULATIONS.

PROPERTY

VALUE

UNIT

TEST METHOD

TOTAL THICKNESS

0.76

mm

ASTM-D- 4325

TENSILE STRENGTH

250(1.72)

psi(Mpa)

ASTM-D- 4325

ELONGATION AT BREAK

300

%

ASTM-D- 4325

CONTINUOUS OPERATING TEMP.

80

°C

ASTM-D- 4325

EMERGENCY OVERLOAD TEMP.

95

°C

ASTM-D- 4325

DIELECTRIC STRENGTH

14

K v / mm

ASTM-D- 4325

EASE CODE

 WIDTH

LENGTH

CORE

 mm

m

mm

IT-RU-LV-0.76/19/3.3

19

3.3

38

IT-RU-LV-0.76/19/6.7

19

6.7

38

IT-RU-LV-0.76/51/6.7

51

6.7

38

IT-RU-LV-0.76/19/10

19

10

32

IT-RU-LV-0.76/25/10

25

10

32

IT-RU-LV-0.76/38/10

38

10

32

IT-RU-LV-0.76/50/10

50

10

32
