TM-PB-VD
ES
| Quantity: | |
|---|---|

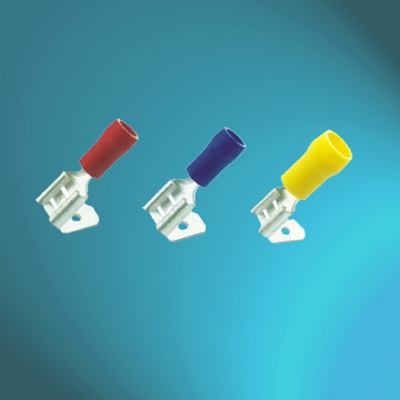

VINLY INSULATED PIGGY-BACK DISCONNECTORS - DOUBLE-CRIMP TYPE
RED INSULATION: CONDUCTOR SIZE 0.5-1.5mm² / 22-16AWG.
BULE INSULATION: CONDUCTOR SIZE 1.5-2.5mm² / 16-14AWG.
YELLOW INSULATION: CONDUCTOR SIZE 4.0-6.0mm² / 12-10AWG.
DOUBLE CRIMP - EXTRA COPPER SLEEVE WITHIN THE TERMINAL MAKES IT 'VIBRATION RESISTANT'.
HIGH GRADE PVC INSULATION MAKES CRIMPING EASY WHILST ENSURING COMPLETE INTEGRITY OF TERMINATION.
A COMPLETE RANGE OF PRE-INSULATED TERMINALS THAT COMBINE HIGH QUALITY WITH COMPETITIVE PRICING.
SPECIFICATIONS | |||||||||||
BASE MATERIAL | BRASS TERMINAL / COPPER SLEEVE | ||||||||||
PLATING | ELECTRO-TINNED | ||||||||||
INSULATION MATERIAL | VINYL | ||||||||||
STANDARD | UL APPROVAL | ||||||||||
MAX. WORKING TEMP. | 75ºC | ||||||||||
MAX. WORKING VOLTAGE | 300V | ||||||||||
EASE CODE | TAB SIZE | DIMENSION mm(inch) | WIRE RANGE | ||||||||
Thickness x Width | W | W1 | F | F1 | L | B | D | d1 | T | mm² | |
TM-PB-1-250VD | 0.8x6.35 (.032x.250) | 6.6 (.260) | 6.35 (.250) | 8.0 (.315) | 8.2 (.323) | 22.5 (.886) | 10.5 (.413) | 3.8 (.150) | 1.7 (.067) | 0.4 (.016) | 0.5-1.5 |
TM-PB-2-250VD | 0.8x6.35 (.032x.250) | 6.6 (.260) | 6.35 (.250) | 8.0 (.315) | 8.2 (.323) | 22.5 (.886) | 10.5 (.413) | 4.7 (.185) | 2.3 (.091) | 0.4 (.016) | 1.5-2.5 |
TM-PB-2-250VD | 0.8x6.35 (.032x.250) | 6.6 (.260) | 6.35 (.250) | 8.0 (.315) | 8.2 (.323) | 24.0 (.945) | 13.0 (.512) | 6.2 (.244) | 3.4 (.134) | 0.4 (.016) | 4.0-6.0 |
VINLY INSULATED PIGGY-BACK DISCONNECTORS - DOUBLE-CRIMP TYPE
RED INSULATION: CONDUCTOR SIZE 0.5-1.5mm² / 22-16AWG.
BULE INSULATION: CONDUCTOR SIZE 1.5-2.5mm² / 16-14AWG.
YELLOW INSULATION: CONDUCTOR SIZE 4.0-6.0mm² / 12-10AWG.
DOUBLE CRIMP - EXTRA COPPER SLEEVE WITHIN THE TERMINAL MAKES IT 'VIBRATION RESISTANT'.
HIGH GRADE PVC INSULATION MAKES CRIMPING EASY WHILST ENSURING COMPLETE INTEGRITY OF TERMINATION.
A COMPLETE RANGE OF PRE-INSULATED TERMINALS THAT COMBINE HIGH QUALITY WITH COMPETITIVE PRICING.
SPECIFICATIONS | |||||||||||
BASE MATERIAL | BRASS TERMINAL / COPPER SLEEVE | ||||||||||
PLATING | ELECTRO-TINNED | ||||||||||
INSULATION MATERIAL | VINYL | ||||||||||
STANDARD | UL APPROVAL | ||||||||||
MAX. WORKING TEMP. | 75ºC | ||||||||||
MAX. WORKING VOLTAGE | 300V | ||||||||||
EASE CODE | TAB SIZE | DIMENSION mm(inch) | WIRE RANGE | ||||||||
Thickness x Width | W | W1 | F | F1 | L | B | D | d1 | T | mm² | |
TM-PB-1-250VD | 0.8x6.35 (.032x.250) | 6.6 (.260) | 6.35 (.250) | 8.0 (.315) | 8.2 (.323) | 22.5 (.886) | 10.5 (.413) | 3.8 (.150) | 1.7 (.067) | 0.4 (.016) | 0.5-1.5 |
TM-PB-2-250VD | 0.8x6.35 (.032x.250) | 6.6 (.260) | 6.35 (.250) | 8.0 (.315) | 8.2 (.323) | 22.5 (.886) | 10.5 (.413) | 4.7 (.185) | 2.3 (.091) | 0.4 (.016) | 1.5-2.5 |
TM-PB-2-250VD | 0.8x6.35 (.032x.250) | 6.6 (.260) | 6.35 (.250) | 8.0 (.315) | 8.2 (.323) | 24.0 (.945) | 13.0 (.512) | 6.2 (.244) | 3.4 (.134) | 0.4 (.016) | 4.0-6.0 |
