FC-GS-US
ES
83071000
| Quantity: | |
|---|---|

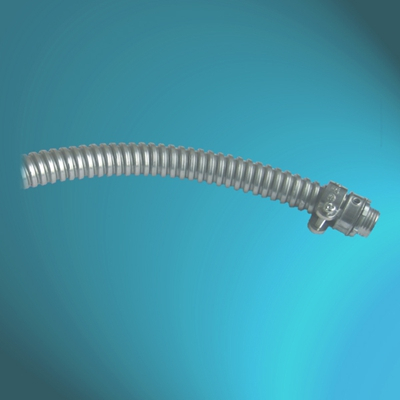

Flexible Galvanised Steel Conduits US Type
SPECIFICATIONS | |||||
MATERIAL: | GALVANISED STEEL | ||||
TEMP.: | -5℃-280℃ | ||||
STRUCTURE: | SQUARE LOCKING | ||||
COLOUR: | NATURAL | ||||
EASE CODE | SIZE | MINIMUM INSIDE DIA. | MAXIMUM OUTSIDE DIA. | BEND RADIUS | ROLL LENGTH |
inch | mm | mm | mm | m | |
FC-GS-US-3/8 | 3/8 | 9.52 | 15.49 | 50 | 76.2 |
FC-GS-US-1/2 | 1/2 | 15.87 | 23.36 | 76 | 30.48 |
FC-GS-US-3/4 | 3/4 | 21.62 | 28.06 | 100 | 30.48 |
FC-GS-US-1 | 1 | 25.4 | 35.05 | 125 | 15.24 |
FC-GS-US-1-1/4 | 1-1/4 | 31.75 | 41.4 | 158 | 15.24 |
FC-GS-US-1-1/2 | 1-1/2 | 38.1 | 49.53 | 180 | 7.62 |
FC-GS-US-2 | 2 | 50.8 | 62.23 | 250 | 7.62 |
FC-GS-US-2-1/2 | 2-1/2 | 63.5 | 77.72 | 320 | 7.62 |
FC-GS-US-3 | 3 | 76.2 | 90.42 | 380 | 7.62 |
FC-GS-US-3-1/2 | 3-1/2 | 88.9 | 103.12 | 450 | 7.62 |
FC-GS-US-4 | 4 | 101.6 | 115.84 | 500 | 7.62 |
