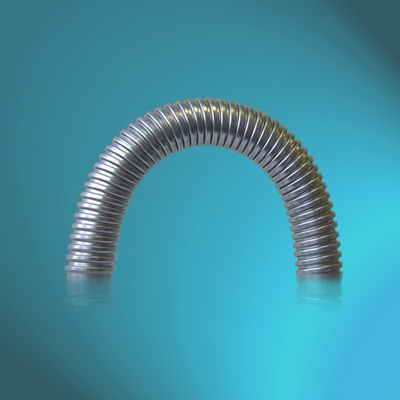

Flexible Galvanised Steel Conduits

MATERIAL:

GALVANISED STEEL

TEMP.:

-5℃-280℃

STRUCTURE:

SQUARE LOCKING

COLOUR:

NATURAL

FEATURE:

STEEL CONDUIT OFFERS FIRE RESISTANCE, HIGH FELICITY AND   GOOD MECHANICAL STRENGTH PROPERTY.

APPLICATION:

IDEAL FOR INTERNAL CABLE INSTALLATIONS IN DRY   ENVIRONMENT WHERE LOW LEVEL INGRESS PROTECTION IS SUFFICIENT.

FITTING:

FIT FOR CONNECTORS OF ALL CN-GS TYPES

EASE CODE

SIZE

MINIMUM INSIDE DIA.

MAXIMUM OUTSIDE DIA.

BEND RADIUS

ROLL LENGTH

inch

mm

mm

mm

m

FC-GS-FL-3/8

3/8

12.3

16.2

30

50

FC-GS-FL-1/2

1/2

15.8

19.7

43

50

FC-GS-FL-3/4

3/4

20.7

25.1

50

50

FC-GS-FL-1

1

26.4

31

57

50

FC-GS-FL-1-1/4

1-1/4

34.7

40.3

70

50

FC-GS-FL-1-1/2

1-1/2

40

45.8

80

25

FC-GS-FL-2

2

51.3

57.1

95

25

FC-GS-FL-2-1/2

2-1/2

63

70.8

140

15

FC-GS-FL-3

3

78

85.9

150

10

FC-GS-FL-4

4

101.6

109.5

190

10
