CPC
ES
853690000
| Quantity: | |
|---|---|

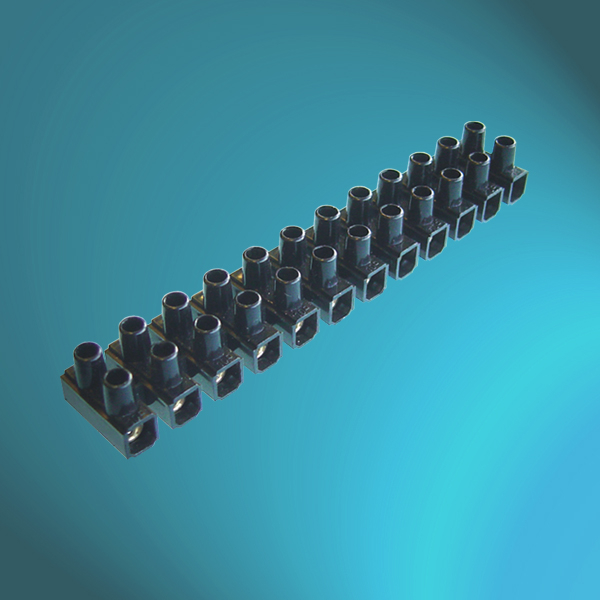

Polycarbonate Terminal Blocks
SPECIFICATIONS | |||||||||||
INSERTS: | BRASS | ||||||||||
HOUSING: | POLYCARBONATE (PC) | ||||||||||
TEMP.: | 130℃ | ||||||||||
SCREWS: | GALVANISED STEEL | ||||||||||
STANDARD: | CE (BS EN 60998) | ||||||||||
COLOR: | BLACK | ||||||||||
FEATURE: | RIGID FLAME RETARDANT | ||||||||||
EASE CODE | CROSS SECTION | CURRENT RANGE | RATED VOLTAGE | DIMENSIONS (mm) | |||||||
L | W | Φ1 | Φ2 | D | d | H | h | ||||
CPC-3A | 4 mm2 | 3-24A | 380V | 93 | 16.8 | 2.8 | 2.3 | 7.8 | 6.0 | 13.6 | 7.6 |
CPC-5A | 6 mm2 | 5-32A | 380V | 114 | 18.8 | 3.3 | 2.6 | 10.0 | 8.0 | 15.0 | 8.8 |
CPC-10A | 10 mm2 | 10-57A | 400V | 125 | 20.7 | 4.3 | 2.8 | 11.0 | 9.0 | 16.2 | 9.6 |
CPC-15A | 12 mm2 | 15-61A | 400V | 137 | 22.5 | 4.5 | 2.8 | 12.0 | 10.0 | 18.8 | 10.2 |
CPC-30A | 16 mm2 | 30-76A | 400V | 165 | 25.5 | 5.5 | 3.0 | 14.0 | 11.0 | 19.8 | 11.2 |
CPC-60A | 25 mm2 | 60-101A | 400V | 187 | 31.2 | 6.5 | 3.8 | 16.5 | 13.0 | 25.5 | 14.8 |
Cross Section: rated for rigid wire and cables (if for flexible wire, it should be reduced one-step, i.e. 6mm2 is 4mm2 | |||||||||||
Our terminal blocks are of the top consistent quality made with PE, PP, PA, PC, Porcelain and brass from China, with excellent design, function and performace on all types of electrical connections. We are ISO 9001 certified company which for many years, has been providing profssional, reliable and efficient services in all our operations including production, quality inspection and control, shipping, fast clearance and delivery services across the UK and Europe and also many other countries.
We have a full range of terminal blocks and can provide neutral packaging, or special customised packaging to meet our customers different requirements.
We are also specialised in making toolings according to customers' own drawings and samples with fast turnaround time and cost-effective solutions.
