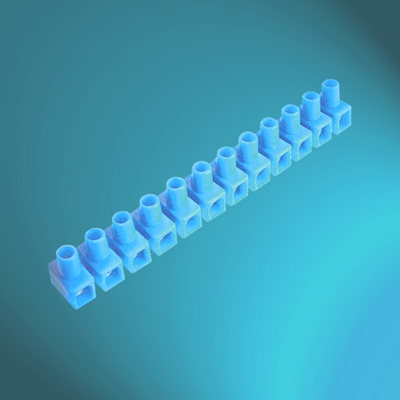

Single Screw Terminal Blocks
SPECIFICATIONS | ||||||||||
INSERTS: | BRASS (NICKEL PLATED OPTION) | |||||||||
HOUSING: | POLYAMIDE (PA 66) | |||||||||
TEMP.: | 105℃ | |||||||||
SCREWS: | GALVANISED STEEL | |||||||||
STANDARD: | CE (BS EN 60998) | |||||||||
COLOR: | BLACK, BLUE, BROWN & GREEN | |||||||||
FEATURE: | SEMI-RIGID & EASY-CUT FLAME RETARDANT ALL SCREWS ARE CAPTIVE & RAISED FOR EASY WIRING | |||||||||
EASE CODE | COLOR | CROSS SECTION | CURRENT RANGE | RATED VOLTAGE | DIMENSIONS (mm) | |||||
W | L | Φ | D | H | h | |||||
CSS-2.5-BK | BLACK | 2.5 mm2 | 24A | 400V | 14 | 122 | 3.3 | 10 | 18 | 10 |
CSS-2.5-BL | BLUE | |||||||||
CSS-2.5-BN | BROWN | |||||||||
CSS-2.5-GN | GREEN | |||||||||
CSS-10-BK | BLACK | 10 mm2 | 24A | 400V | 14 | 122 | 4.3 | 10 | 18 | 10 |
CSS-10-BL | BLUE | |||||||||
CSS-10-BN | BROWN | |||||||||
CSS-10-GN | GREEN | |||||||||
Cross Section: | rated for rigid wire and cables (if for flexible wire, it should be reduced one-step, i.e. 6mm2 is 4mm2 Φ1 wire entry hole diameter Φ2 fixing hole diameter | |||||||||
