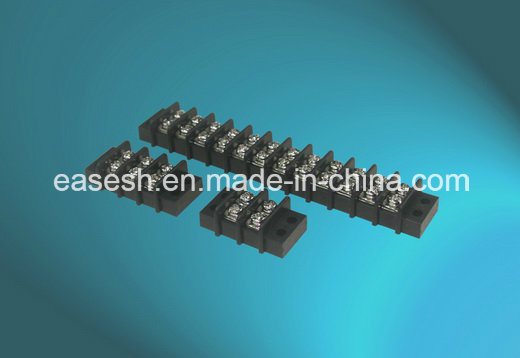

Chinese Manufacturer Nylon Barrier Strips Isolated Terminal Blocks
Specifications:
Inserts: Brass
Housing material: Polyamide (PA 66, UL94 V0)
Temp.: -40ºC ~ 105ºC
Screws: Nickel Plated Steel
Cross Section: 4mm⊃2;
Circuit: 2-24
Withstanding Voltage: 1000V/MIN
Rated Current: 3A ~ 101A
Color: Black, white and other color can be customized
Insulation Resistance: 500MΩ/DC100V

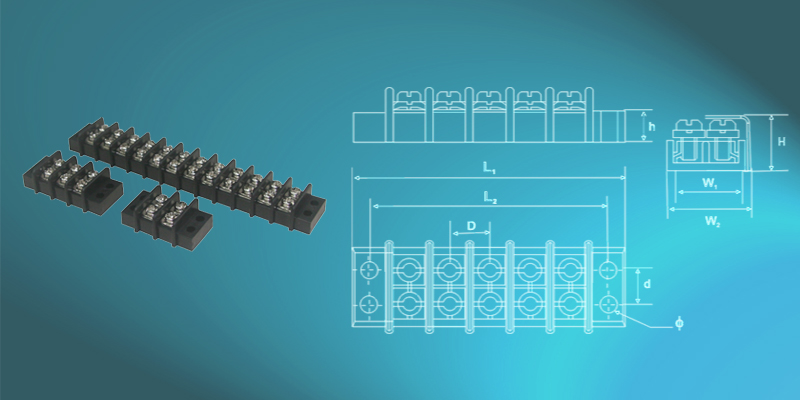

| EASE CODE | WIRE RANGE | CURRENT RANGE | RATED VOLTAGE | DIMENSIONS (mm) | ||||||||
| UL / IEC | UL / IEC | UL / IEC | L1 | L2 | W1 | W2 | D | d | H | h | Φ | |
| CBS-4-2P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 36 | 28.5 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-3P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 45.5 | 38 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-4P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 55 | 47.5 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-5P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 64.5 | 57 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-6P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 74 | 66.5 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-7P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 83.5 | 76 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-8P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 93 | 85.5 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-9P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 102.5 | 95 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-10P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 112 | 104.5 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-11P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 121.5 | 114 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-12P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 131 | 123.5 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-13P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 140.5 | 133 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-14P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 150 | 142.5 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-15P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 159.5 | 152 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-16P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 169 | 161.5 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-17P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 178.5 | 171 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-18P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 188 | 180.5 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-19P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 197.5 | 190 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-20P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 207 | 199.5 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-21P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 216.5 | 209 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-22P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 226 | 218.5 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-23P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 235.5 | 228 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
| CBS-4-24P | 22-12AWG/4 mm2 | 20A/32A | 300V/750V | 245 | 237.5 | 18.5 | 21.6 | 9.5 | 8.0 | 13.0 | 7.0 | 4.0 |
Our terminal blocks are of the top consistent quality made with PE, PP, PA, PC, Porcelain and brass from China, with excellent design, function and performace on all types of electrical connections. We are ISO 9001 certified company which for many years, has been providing profssional, reliable and efficient services in all our operations including production, quality inspection and control, shipping, fast clearance and delivery services across the UK and Europe and also many other countries.
We have a full range of terminal blocks and can provide neutral packaging, or special customised packaging to meet our customers different requirements.
We are also specialised in making toolings according to customers' own drawings and samples with fast turnaround time and cost-effective solutions.
Why Choose EASE?
a. Quality is our culture. All proction is strictly according to UL/ VDE/ REACH/ IMQ/ CE regulateion and with100% tested before delivery.
b. Free samples will be provided for evaluation at any time.
c. Guarantee the prompt delivery. Special for customers in the UK and Europe: the same day delivery within UK and 5-day delivery in Europe.
d. OEM is available. And all your information will be confidential.
e. We are One-stop Shop for cable accessories.
f. Full experience of dealing with heavy customers and 24-hours customer service.
If you are frustrated that your current supplier of electrical accessories doesn't seem to be giving the category their full attention, is frequently out of stock, or offers substandard products, give us a call. Let's discuss how EASE Ltd. can increase your sales and margins!
Your satisfaction is our ultimate goal!
Other Products You May Be Interested In:

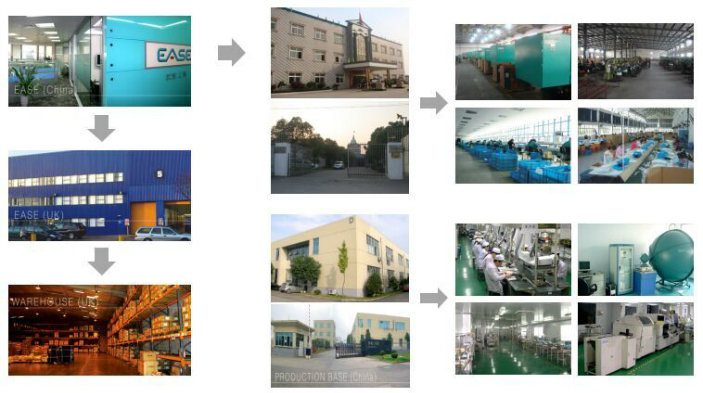

EASE Ltd. FACILITIES

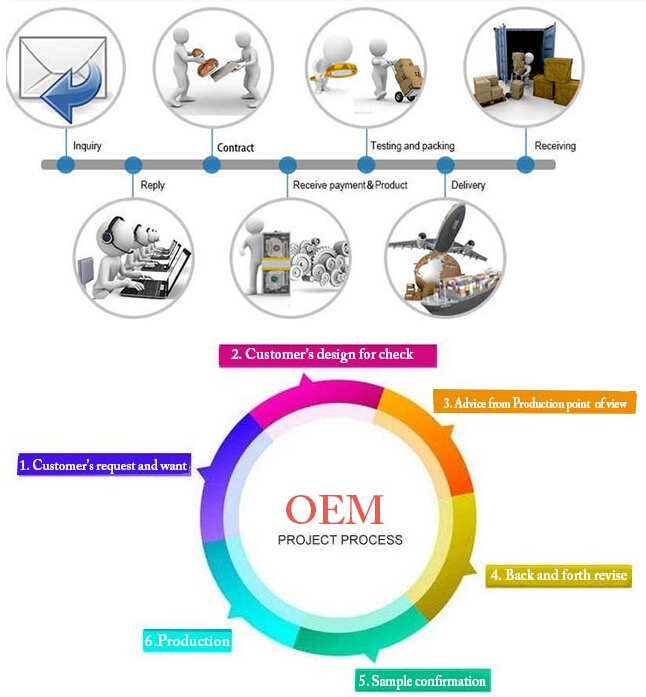

OUR SERIVICE:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized product we can help you to design and produce
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
6. All the products must be double checked before delivery to ensure the quality again.
Our Exhibitions:
We have attended various Exhibitions in many countries for more than 10 years. And you can meet us at Hannover Messe EVERY YEAR. If you are interested in our products and hope to talk with us face to face but won't come to China, warmly welcome to our booth in the following years!
If any needs,
