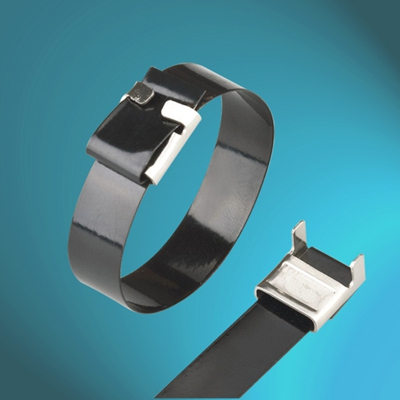

Expoxy Semi-Coated Stainless Steel Cable Ties Wing-Locking

MATERIAL:

STAINLESS STEEL 304 OR 316

FEATURE:

THE SS TIES WITH THE UNIQUE BUCKLE LOCKING MECHANISM IS DESIGNED FOR THE APPLICATION WHERE HIGH TENSILE STRENGTH, NON-FLAMMABILITY, HIGH RESISTANCE TO ACETIC ACID, ALKALI ACID   AND SULPHURIC ACID ARE NEEDED.

COLOUR:

BLACK EPOXY (STANDARD)

STANDARD:

UL & DNV

WORK TEMP.:

-50℃～150℃

OPTION:

PVC OR PA11 COATING

(NYLON 11 FEATURE: PA11 PROVIDES STRONG RESISTANCE TO CHEMICAL, SALT SPRAY AND ABRASION. IT HAS EXCELLENT FLEXIBILITY.)

EASE CODE.

LENGTH

WIDTH

MAX. BUNDLE DIAMETER

MIN. TENSILE STRENGTH

mm (inch)

mm (inch)

mm (inch)

N (lbs)

CT-SS-WL-150/10SC-EP

150 (5.90)

10(0.39)

37(1.46)

1000(225)

CT-SS-WL-200/10SC-EP

200(7.87)

10(0.39)

50(1.97)

1000(225)

CT-SS-WL-250/10SC-EP

250(9.84)

10(0.39)

63(2.48)

1000(225)

CT-SS-WL-300/10SC-EP

300(11.8)

10(0.39)

76(2.99)

1000(225)

CT-SS-WL-350/10SC-EP

350(13.78)

10(0.39)

89(3.50)

1000(225)

CT-SS-WL-400/10SC-EP

400(15.75)

10(0.39)

102(4.02)

1000(225)

CT-SS-WL-450/10SC-EP

450(17.72)

10(0.39)

115(4.53)

1000(225)

CT-SS-WL-500/10SC-EP

500(19.69)

10(0.39)

128(5.04)

1000(225)

CT-SS-WL-550/10SC-EP

550(21.65)

10(0.39)

141(5.55)

1000(225)

CT-SS-WL-600/10SC-EP

600(23.62)

10(0.39)

154(6.06)

1000(225)

CT-SS-WL-650/10SC-EP

650(25.6)

10(0.39)

167(6.57)

1000(225)

CT-SS-WL-150/12SC-EP

150 (5.90)

12 (0.472)

37(1.46)

1200(270)

CT-SS-WL-200/12SC-EP

200(7.87)

12 (0.472)

50(1.97)

1200(270)

CT-SS-WL-250/12SC-EP

250(9.84)

12 (0.472)

63(2.48)

1200(270)

CT-SS-WL-300/12SC-EP

300(11.8)

12 (0.472)

76(2.99)

1200(270)

CT-SS-WL-350/12SC-EP

350(13.78)

12 (0.472)

89(3.50)

1200(270)

CT-SS-WL-400/12SC-EP

400(15.75)

12 (0.472)

102(4.02)

1200(270)

CT-SS-WL-450/12SC-EP

450(17.72)

12 (0.472)

115(4.53)

1200(270)

CT-SS-WL-500/12SC-EP

500(19.69)

12 (0.472)

128(5.04)

1200(270)

CT-SS-WL-550/12SC-EP

550(21.65)

12 (0.472)

141(5.55)

1200(270)

CT-SS-WL-600/12SC-EP

600(23.62)

12 (0.472)

154(6.06)

1200(270)

CT-SS-WL-650/12SC-EP

650(25.59)

12 (0.472)

167(6.57)

1200(270)

CT-SS-WL-700/12SC-EP

700(27.56)

12 (0.472)

180(7.09)

1200(270)

CT-SS-WL-200/15SC-EP

200(7.87)

15(0.59)

50(1.97)

1500(337)

CT-SS-WL-250/15SC-EP

250(9.84)

15(0.59)

63(2.48)

1500(337)

CT-SS-WL-300/15SC-EP

300(11.8)

15(0.59)

76(2.99)

1500(337)

CT-SS-WL-350/15SC-EP

350(13.78)

15(0.59)

89(3.50)

1500(337)

CT-SS-WL-400/15SC-EP

400(15.75)

15(0.59)

102(4.02)

1500(337)

CT-SS-WL-450/15SC-EP

450(17.72)

15(0.59)

115(4.53)

1500(337)

CT-SS-WL-500/15SC-EP

500(19.69)

15(0.59)

128(5.04)

1500(337)

CT-SS-WL-550/15SC-EP

550(21.65)

15(0.59)

141(5.55)

1500(337)

CT-SS-WL-600/15SC-EP

600(23.62)

15(0.59)

154(6.06)

1500(337)

CT-SS-WL-650/15SC-EP

650(25.59)

15(0.59)

167(6.57)

1500(337)

CT-SS-WL-700/15SC-EP

700(27.56)

15(0.59)

180(7.09)

1500(337)

CT-SS-WL-750/15SC-EP

750(29.53)

15(0.59)

191(7.52)

1500(337)

CT-SS-WL-800/15SC-EP

800(31.5)

15(0.59)

193(7.59)

1500(337)

CT-SS-WL-1000/15SC-EP

1000(39.37)

15(0.59)

206(8.11)

1500(337)
