CT-SS-LM-150/7UC
ES
73269019
| Quantity: | |
|---|---|

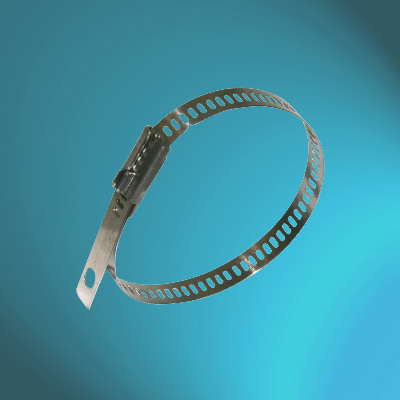

Ladder Multi-Lock Uncoated Stainless Steel 304 316 Cable Ties
Product Feature:
Strong self-locking mechanism(Pawl and ratchet) saves time on installation.
Flat and low profile head(no sharp edge), for easy installation.
Larger slot at the end, allows the use of a hook-type tool.
Uncoated version for high temperature applications.
Applications:
Ideal for used in Petrochemical and food processing industries, power stations, mining, shipbuilding, offshore and other aggressive environments.
Technical Information:
Material: Stainless Steel Grade 304 or 316
304 grade stainless steel, for standard applications.
316 grade stainless steel, for the most corrosive environments.
Working Temp.: -80℃ to 538℃
Description: Entirely Metallic
Flammability: Fireproof
Other Properties: UV-resistant
Sheet:
| EASE CODE | LENGTH | WIDTH | MAX. BUNDLE DIAMETER | MIN. TENSILE STRENGTH |
| mm (inch) | mm (inch) | mm (inch) | N (lbs) | |
| CT-SS-LM-150/7UC | 150 (5.90) | 7 (0.276) | 33(1.30) | 1120 (252) |
| CT-SS-LM-225/7UC | 225(8.86) | 7 (0.276) | 57(2.20) | 1120 (252) |
| CT-SS-LM-300/7UC | 300(11.8) | 7 (0.276) | 81(3.20) | 1120 (252) |
| CT-SS-LM-335/7UC | 335(13.2) | 7 (0.276) | 92(3.60) | 1120 (252) |
| CT-SS-LM-400/7UC | 400(15.7) | 7 (0.276) | 113(4.40) | 1120 (252) |
| CT-SS-LM-450/7UC | 450(17.7) | 7 (0.276) | 129(5.10) | 1120 (252) |
| CT-SS-LM-490/7UC | 490(19.3) | 7 (0.276) | 141(5.60) | 1120 (252) |
| CT-SS-LM-550/7UC | 550(21.7) | 7 (0.276) | 161(6.30) | 1120 (252) |
| CT-SS-LM-600/7UC | 600(23.6) | 7 (0.276) | 176(6.90) | 1120 (252) |
| CT-SS-LM-650/7UC | 650(25.6) | 7 (0.276) | 192(7.60) | 1120 (252) |
| CT-SS-LM-700/7UC | 700(27.6) | 7 (0.276) | 208(8.02) | 1120 (252) |
| CT-SS-LM-750/7UC | 750(29.5) | 7 (0.276) | 224(8.80) | 1120 (252)) |
| CT-SS-LM-800/7UC | 800(31.5) | 7 (0.276) | 240(9.40) | 1120 (252) |
| CT-SS-LM-150/12UC | 150(5.90) | 12 (0.472) | 33(1.30) | 1800 (405) |
| CT-SS-LM-225/12UC | 225(8.86) | 12 (0.472) | 57(2.20) | 1800 (405) |
| CT-SS-LM-300/12UC | 300(11.8) | 12 (0.472) | 81(3.20) | 1800 (405) |
| CT-SS-LM-335/12UC | 335(13.2) | 12 (0.472) | 92(3.60) | 1800 (405) |
| CT-SS-LM-400/12UC | 400(15.7) | 12 (0.472) | 113(4.40) | 1800 (405) |
| CT-SS-LM-450/12UC | 450(17.7) | 12 (0.472) | 129(5.10) | 1800 (405) |
| CT-SS-LM-490/12UC | 490(19.3) | 12 (0.472) | 141(5.60) | 1800 (405) |
| CT-SS-LM-550/12UC | 550(21.7) | 12 (0.472) | 161(6.30) | 1800 (405) |
| CT-SS-LM-600/12UC | 600(23.6) | 12 (0.472) | 176(6.90) | 1800 (405) |
| CT-SS-LM-650/12UC | 650(25.6) | 12 (0.472) | 192(7.60) | 1800 (405) |
| CT-SS-LM-700/12UC | 700(27.6) | 12 (0.472) | 208(8.20) | 1800 (405) |
| CT-SS-LM-750/12UC | 750(29.5) | 12 (0.472) | 224(8.80) | 1800 (405) |
| CT-SS-LM-800/12UC | 800(31.5) | 12 (0.472) | 240(9.40) | 1800 (405) |
