CT-SS-BL-150/12-PC-PA
ES
| Quantity: | |
|---|---|

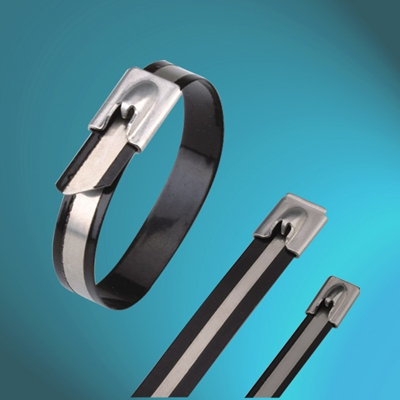

Stainless Steel Cable Ties Ball-Lock PA11 Coated Ties
Product Feature:
Better loop strength, compare to coated ties.
Provide additional edge protection, compare to uncoated ties.
Prevent the corrosion between dissimilar materials.
Applications:
Ideal For communication and electrical cables.
Technical Information:
Material: Stainless Steel Grade 304 or 316
304 grade stainless steel, for standard applications
316 grade stainless steel, for extra corrosive environments
Coating: Nylon 11
Working Temp.: -80ºC to 150ºC
Description: Black Band with Metallic Line
Flammability: Fireproof
Other Properties: UV-resistant, Halogen free, non toxic
Sheet:
EASE CODE | LENGTH | WIDTH | MAX. BUNDLE DIAMETER | MIN. TENSILE STRENGTH |
| mm (inch) | mm (inch) | mm (inch) | N (lbs) | |
| CT-SS-BL-150/12PC-PA | 150 (5.90) | 12 (0.472) | 37(1.46) | 1200 (270) |
| CT-SS-BL-200/12PC-PA | 200(7.87) | 12 (0.472) | 50(1.97) | 1200 (270) |
| CT-SS-BL-250/12PC-PA | 250(9.84) | 12 (0.472) | 63(2.48) | 1200 (270) |
| CT-SS-BL-300/12PC-PA | 300(11.8) | 12 (0.472) | 76(2.99) | 1200 (270) |
| CT-SS-BL-350/12PC-PA | 350(13.78) | 12 (0.472) | 89(3.50) | 1200 (270) |
| CT-SS-BL-400/12PC-PA | 400(15.75) | 12 (0.472) | 102(4.02) | 1200 (270) |
| CT-SS-BL-450/12PC-PA | 450(17.72) | 12 (0.472) | 115(4.53) | 1200 (270) |
| CT-SS-BL-500/12PC-PA | 500(19.69) | 12 (0.472) | 128(5.04) | 1200 (270) |
| CT-SS-BL-550/12PC-PA | 550(21.65) | 12 (0.472) | 141(5.55) | 1200 (270) |
| CT-SS-BL-600/12PC-PA | 600(23.62) | 12 (0.472) | 154(6.06) | 1200 (270) |
| CT-SS-BL-650/12PC-PA | 650(25.59) | 12 (0.472) | 167(6.57) | 1200 (270) |
| CT-SS-BL-700/12PC-PA | 700(27.56) | 12 (0.472) | 180(7.09) | 1200 (270) |
| CT-SS-BL-200/15PC-PA | 200(7.87) | 15(0.59) | 50(1.97) | 1500(337) |
| CT-SS-BL-250/15PC-PA | 250(9.84) | 15(0.59) | 63(2.48) | 1500(337) |
| CT-SS-BL-300/15PC-PA | 300(11.8) | 15(0.59) | 76(2.99) | 1500(337) |
| CT-SS-BL-350/15PC-PA | 350(13.78) | 15(0.59) | 89(3.50) | 1500(337) |
| CT-SS-BL-400/15PC-PA | 400(15.75) | 15(0.59) | 102(4.02) | 1500(337) |
| CT-SS-BL-450/15PC-PA | 450(17.72) | 15(0.59) | 115(4.53) | 1500(337) |
| CT-SS-BL-500/15PC-PA | 500(19.69) | 15(0.59) | 128(5.04) | 1500(337) |
| CT-SS-BL-550/15PC-PA | 550(21.65) | 15(0.59) | 141(5.55) | 1500(337) |
| CT-SS-BL-600/15PC-PA | 600(23.62) | 15(0.59) | 154(6.06) | 1500(337) |
| CT-SS-BL-650/15PC-PA | 650(25.59) | 15(0.59) | 167(6.57) | 1500(337) |
| CT-SS-BL-700/15PC-PA | 700(27.56) | 15(0.59) | 180(7.09) | 1500(337) |
| CT-SS-BL-750/15PC-PA | 750(29.53) | 15(0.59) | 191(7.52) | 1500(337) |
| CT-SS-BL-800/15PC-PA | 800(31.5) | 15(0.59) | 193(7.59) | 1500(337) |
| CT-SS-BL-1000/15PC-PA | 1000(39.37) | 15(0.59) | 206(8.11) | 1500(337) |
