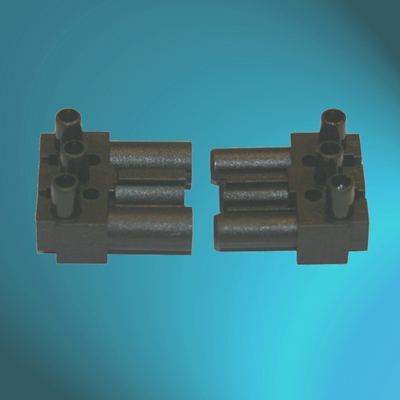

3 Pole Round Pluggable Professional Terminal Blocks

1.with /without protection cover/base plate

2.Compliant with EN 61984 (VDE0627)

3.Touch-proof/ Safe when disconnected under loading

4. Protection class: When fully assembled with protection covers/base-plates - IP30

5.Color : Black/White ; other colours upon request

SPECIFICATION

1.Housing : Polyamide 66 (94-V2 grade)

2.Metal Parts : Plate Brass/Stainless Steel Spring

3.Ambient Temperature : T110 ℃

4.Wiring Capacity : 0.5 - 2.5mm2 (terminal part)

5.Voltage/Ampere Rating : 250V/16A

* For fitting to 3-cord Round Cable. (up to 1.5mm2)
