NYLON INSULATED FEMALE FLAG DISCONNECTORS
RED INSULATION: CONDUCTOR SIZE 0.5-1.5mm² / 22-16AWG.
BULE INSULATION: CONDUCTOR SIZE 1.5-2.5mm² / 16-14AWG.
YELLOW INSULATION: CONDUCTOR SIZE 4.0-6.0mm² / 12-10AWG.
HIGH GRADE PVC INSULATION MAKES CRIMPING EASY WHILST ENSURING COMPLETE INTEGRITY OF TERMINATION.
A COMPLETE RANGE OF PRE-INSULATED TERMINALS THAT COMBINE HIGH QUALITY WITH COMPETITIVE PRICING.
SPECIFICATIONS | |||||||
BASE MATERIAL | NYLON INSULATION / BRASS TERMINAL | ||||||
PLATING | ELECTRO-TINNED | ||||||
INSULATION MATERIAL | NYLON | ||||||
MAX. WORKING TEMP. | 105ºC | ||||||
MAX. WORKING VOLTAGE | 300V | ||||||
EASE CODE | TAB SIZE | DIMENSION mm(inch) | WIRE RANGE | ||||

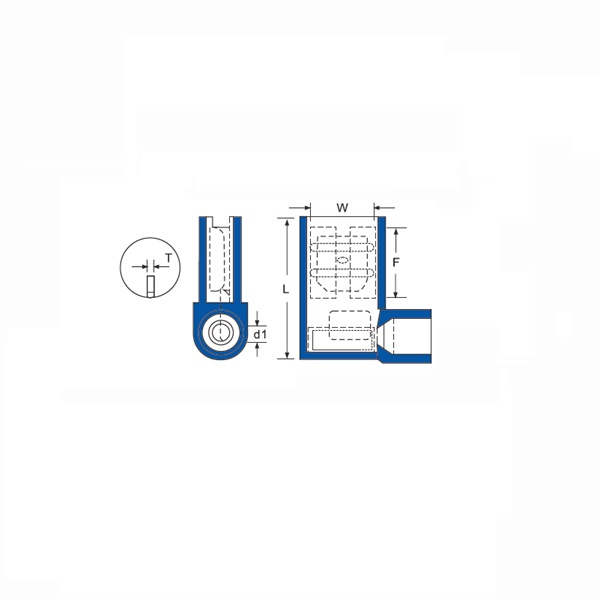

Thickness x Width | W | F | L | d1 | T | mm² | |
TM-FLDNY-1-187(5) | 0.5x4.75 (.020x.187) | 5.0 (.197) | 7.0 (.276) | 15.0 (.591) | 1.6 (.063) | 0.4 (.016) | 0.5-1.5 |
TM-FLDNY-1-187(8) | 0.8x4.75 (.032x.187) | 5.0 (.197) | 7.0 (.276) | 15.0 (.591) | |||
TM-FLDNY-1-250 | 0.8x6.35 (.032x.250) | 6.6 (.260) | 7.6 (.299) | 15.2 (.598) | |||
TM-FLDNY-2-187(5) | 0.5x4.75 (.020x.187) | 5.0 (.197) | 7.0 (.276) | 15.2 (.598) | 2.1 (.083) | 0.4 (.016) | 1.5-2.5 |
TM-FLDNY-2-187(8) | 0.8x4.75 (.032x.187) | 5.0 (.197) | 7.0 (.276) | 15.2 (.598) | |||
TM-FLDNY-2-250 | 0.8x6.35 (.032x.250) | 6.6 (.260) | 7.6 (.299) | 15.2 (.598) | |||
