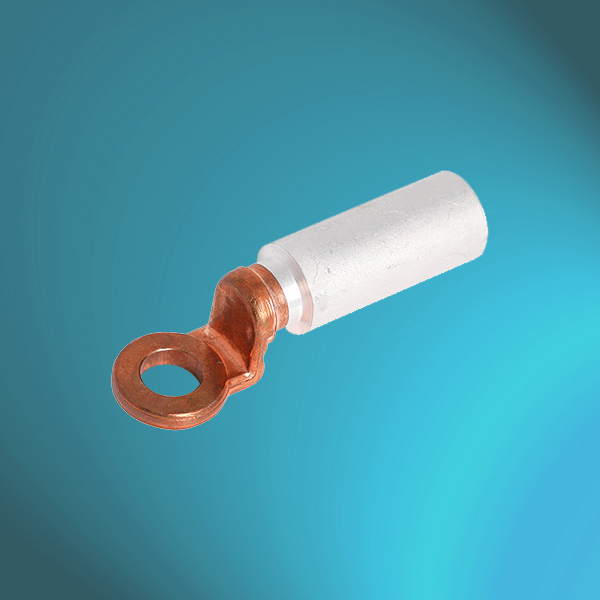

DTL-2 Bi-metallic Lugs
SPECIFICATIONS | |||||||||
MATERIAL: | Cu, AL-1050A | ||||||||
PURITY: | CU > 99.9% | ||||||||
HIGH CONDUCTIVITY COPPER TO BS2871 | |||||||||
BRIGHT SELF FINISH | |||||||||
ALL DIMENSIONS ARE IN MM | |||||||||
EASE CODE | D | d | G | Φ | B | H | L1 | L2 | L |
TU-DTL-2-16/8 | 16 | 5.6 | 12 | 8.4 | 20 | 4 | 43 | 47.5 | 79 |
TU-DTL-2-25/8 | 16 | 6.4 | 12 | 8.4 | 20 | 4 | 43 | 47.5 | 79 |
TU-DTL-2-35/8 | 16 | 8.5 | 12 | 8.4 | 20 | 4 | 43 | 47.5 | 79 |
TU-DTL-2-50/10 | 20 | 9.4 | 14.8 | 10.5 | 24 | 5 | 43 | 47.5 | 88 |
TU-DTL-2-70/12 | 20 | 10.9 | 14.8 | 12.8 | 24 | 5 | 43 | 47.5 | 88 |
TU-DTL-2-95/12 | 20 | 12.4 | 14.8 | 12.8 | 24 | 5 | 43 | 47.5 | 88 |
TU-DTL-2-120/12 | 25 | 13.7 | 18.8 | 12.8 | 30 | 6 | 59 | 64 | 110 |
TU-DTL-2-150/12 | 25 | 15.5 | 18.8 | 12.8 | 30 | 6 | 59 | 64 | 110 |
TU-DTL-2-185/12 | 32 | 17 | 23.8 | 12.8 | 35 | 7 | 59 | 64 | 117 |
TU-DTL-2-240/12 | 32 | 19.5 | 23.8 | 12.8 | 35 | 7 | 59 | 64 | 117 |
TU-DTL-2-300/16 | 40 | 23.2 | 28 | 16.5 | 36 | 7.5 | 93 | 101 | 155.5 |
TU-DTL-2-400/16 | 40 | 26 | 28 | 16.5 | 36 | 7.5 | 93 | 101 | 155.5 |
