CN-BR-PV/GS-EX
ES
85369090
| Quantity: | |
|---|---|

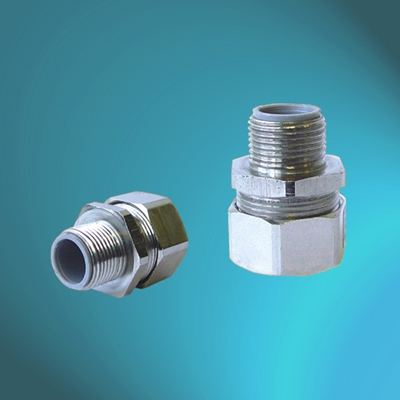

External Thread Brass Connectors
SPECIFICATIONS | |||||
MATERIAL: | BRASS | ||||
COATING: | NICKEL | ||||
COMPONENTS: | LOCK NUT, | ||||
ADAPTOR, | |||||
FERRULE, | |||||
FEATURE: | BRASS TYPE CONNECTORS ARE FOR LINKING FLEXIBLE CONDUITS TO A BOX OR ENCLOSURE. | ||||
FITTING: | FOR FC-PV AND TYPE CONDUITS. | ||||
EASE CODE | EXTERNAL THREAD | CONDUIT SIZE | D | L | T |
inch | mm | mm | mm | ||
CN-BR-PV/GS-EX-1/4 | M16 | 1/4 | 28 | 56 | 32 |
CN-BR-PV/GS-EX-3/8 | M20 | 3/8 | 28 | 56 | 35 |
CN-BR-PV/GS-EX-1/2 | M20 | 1/2 | 32 | 56 | 32 |
CN-BR-PV/GS-EX-3/4 | M25 | 3/4 | 39 | 63 | 39 |
CN-BR-PV/GS-EX-1 | M32 | 1 | 47 | 80 | 46 |
CN-BR-PV/GS-EX-1-1/4 | M40 | 1-1/4 | 60 | 98 | 60 |
CN-BR-PV/GS-EX-1-1/2 | M50 | 1-1/2 | 67 | 97 | 65 |
CN-BR-PV/GS-EX-2 | M63 | 2 | 81 | 117 | 79 |
