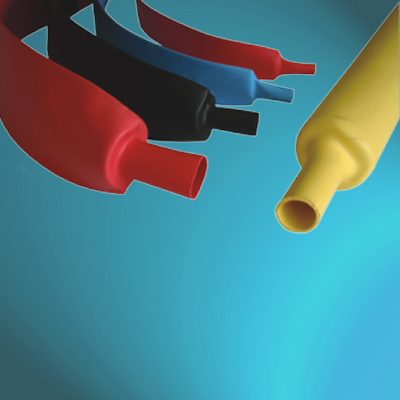

Heat-Shrink Bus-Bar Tubing

Inside

Inside

Wall

Diameter (D)

Diameter (d)

Thickness (t)

HS-BB-20/10-1KV

≥20

≤10

1.00±0.20

20X3

HS-BB-25/12-1KV

≥25

≤12

1.20±0.20

25X3

HS-BB-30/12-1KV

≥30

≤15

1.20±0.20

30X3

HS-BB-40/20-1KV

≥40

≤20

1.30±0.20

40X4

HS-BB-50/25-1KV

≥50

≤25

1.30±0.20

50X5

HS-BB-60/30-1KV

≥60

≤30

1.30±0.20

60X6

HS-BB-80/40-1KV

≥80

≤40

1.50±0.20

80X8

HS-BB-100/50-1KV

≥100

≤50

1.40±0.20

100X10

HS-BB-120/60-1KV

≥120

≤60

1.40±0.20

120X10

HS-BB-150/75-1KV

≥150

≤75

1.40±0.20

150X10

HS-BB-20/8-10KV

≥20

≤8

2.30±0.30

20X3

HS-BB-30/12-10KV

≥30

≤12

2.30±0.30

30X3

HS-BB-40/16-10KV

≥40

≤16

2.30±0.30

40X4

HS-BB-50/20-10KV

≥50

≤20

2.60±0.40

50X5

HS-BB-60/24-10KV

≥60

≤24

2.60±0.40

60X6

HS-BB-80/32-10KV

≥80

≤32

2.80±0.50

80X8

HS-BB-100/40-10KV

≥100

≤40

2.80±0.50

100X10

HS-BB-120/50-10KV

≥120

≤50

2.80±0.50

120X10

HS-BB-150/60-10KV

≥150

≤60

2.80±0.50

150X10

Electrical

Dielectric Strength (kV/mm)

≥15kV/mm

Volume Resistivity (W-cm)

≥1.0x1014

Shrinkage

Shrink Temperature

110°C

Operating Temperature Range

-55°C - 125°C

Chemical

Oxygen Index

≥30

Water Absorption (%)

≤0.5%

Physical

Tensile Strength (MPa)

≥12Mpa

Tensile Strength after Aging

≥10Mpa

Elongation at Break

≥450%

Elongation at Break after Aging (%)

≥400%

Low-Temperature Flexibility (-40°C/4hrs)

No Cracking

Heat Shock

(200°C±3°C/4hrs)

No Cracking
