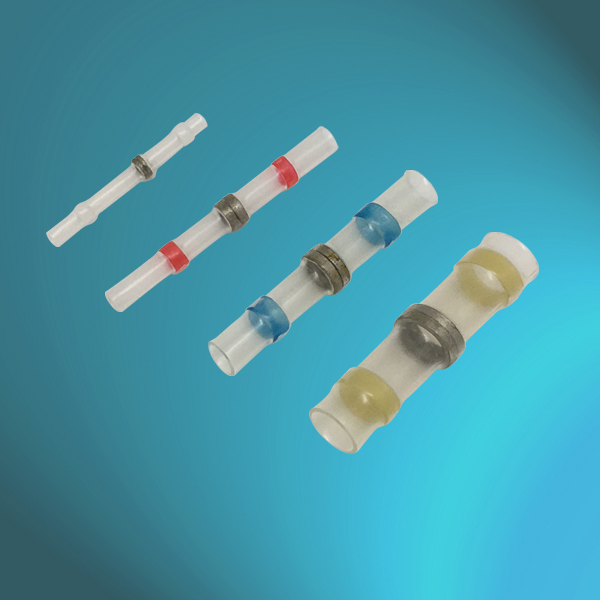

HEAT SHRINK SOLDERABLE BUTTS - IP68 WATERPROOF, DOUBLE SOLDER SLEEVES
SPECIFICATION | ||||||||||
MATERIAL | HEAT-SHRINKABLE POLYOLEFIN TUBE; LEAD-FREE TIN SOLDER SLEEVE; MELTABLE THERMALLY STABILIZED THERMOPLASTIC ADHESIVE RING. | |||||||||
WORKING TEMP. | -55℃ ~ 125℃ | |||||||||
MIN. SHRINK TEMP. | 80℃ | |||||||||
MIN. MELTING TEMP. | 138℃ | |||||||||
FULLY MELTING TEMP. | 160℃ | |||||||||
DIELECTRIC STRENGTH | 1kV | |||||||||
STANDARD | IP68 & RoHS | |||||||||
DESCRIPTION | SHRINK RATIO 2:1 | |||||||||
MELTABLE THERMALLY STABILIZED THERMOPLASTIC PROVIDES EXCELLENT WATERPROOF PROPERTY. | ||||||||||
HIGH ELASTICITY KEEPS STEADY PERFORMANCE. | ||||||||||
TRANSPARENT SLEEVE PROVIDES PRECISE INSPECTION. | ||||||||||
USER-FRIENDLY SOLDERING PROCESS. | ||||||||||
EASE CODE | SOLDER SLEEVE (mm) | AS SUPPLIED (mm) | AFTER RECOVERY (mm) | LENGTH (mm) | WIRE RANGE | |||||
I.D (C3) | Thickness (T2) | A2/A3 | I.D (C1) | I.D (C2) | Thickness (T1) | I.D. | Thickness | L | mm² | |
TM-HS-SB-0.5D | 1.9 | 0.6 | 0.6 | 2.1 | 1.8 | 0.4 | 1.0 | 0.5 | 26.5 | 0.25-0.5 |
TM-HS-SB-1.5D | 2.9 | 0.7 | 1.5 | 3.4 | 2.7 | 0.5 | 1.5 | 0.6 | 40.5 | 0.5-1.5 |
TM-HS-SB-2.5D | 4.9 | 0.8 | 1.5 | 5.1 | 4.5 | 0.4 | 2.2 | 0.7 | 40.5 | 1.5-2.5 |
TM-HS-SB-6.0D | 7.4 | 1.0 | 1.5 | 8.0 | 7.0 | 0.4 | 3.5 | 0.7 | 40.5 | 4.0-6.0 |
