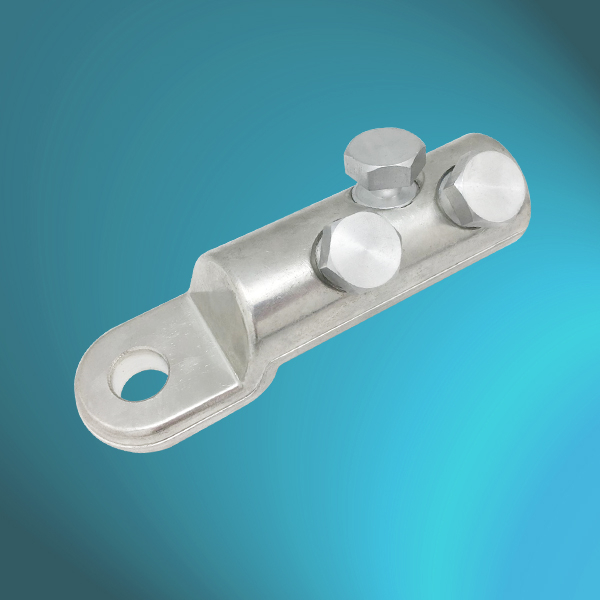

Mechanical Aluminum Cable Lug

MATERIAL:

HIGH STRENGTH ALUMINUM ALLOY

FEATURE:

MECHANICAL LUG,NO NEEDS OF CRIMPING TOOLS AND THE ATTENDANT OPERATOR SKILL

ONLY A SOCKET SPANNER OR A WRENCH IS NEEDEDD                          TORQUE CONTROLLED SHEARED OFF BOLTS GUARANTEE   A GOOD ELECTRICAL CONTACT

WIDE APPLICATION RANGE

THE SOLID PALM ELIMINATES THE INGRESS OF MOISTURE

PREFILLED WITH JOINTING COMPOUND

SURFACE:

ELECTRO TIN PLATED

EASE CODE.

CROSS-SECTIONAL RANGE

PALM HOLE DIAMETER

DIMENSIONS

CONTACT BOLTS QUANTITY

HEAD SIZE AF

mm²

mm

mm

mm

mm

LB

L1

L2

D1

D2

TU-AUL-25/95-13

25-95

13

60

30

24

12.8

1

13

TU-AUL-25/95-17

25-95

17

60

30

24

12.8

1

13

TU-AUL-35/150-13

35-150

13

86

35

28

15.8

1

17

TU-AUL-35/150-17

35-150

17

86

35

28

15.8

1

17

TU-AUL-95/240-13

95-240

13

112

60

33

20

2

19

TU-AUL-95/240-17

95-240

17

112

60

33

20

2

19

TU-AUL-120/300-13

120-300

13

115

65

37

24

2

22

TU-AUL-120/300-17

120-300

17

115

65

37

24

2

22

TU-AUL-185/400-13

185-400

13

137

80

42

25.5

3

22

TU-AUL-185/400-17

185-400

17

137

80

42

25.5

3

22

TU-AUL-185/400-21

185-400

21

137

80

42

25.5

3

22

TU-AUL-500/630-13

500-630

13

150

95

50

33

3

27

TU-AUL-500/630-17

500-630

17

150

95

50

33

3

27

TU-AUL-500/630-21

500-630

21

150

95

50

33

3

27

TU-AUL-800-50×56-D21

800

21

202

120

56

36

4

27

TU-AUL-800-80×40-2D14×40

800

2×14

237

120

56

36

4

27
