CT-PA-SSBL-
ES
| Quantity: | |
|---|---|
| SPECIFICATION | |
| MATERIAL | NYLON 6.6 & STAINLESS STEEL 304 OR 316. |
| WORKING TEMP. | -40℃~85℃ |
| FLAMMABILITY | UL94V-2 |

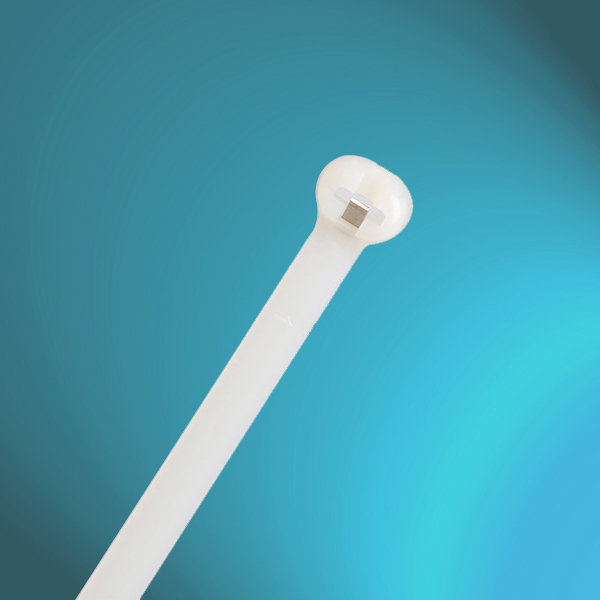

| DESCRIPTION | NYLON TIE WITH STAINLESS STEEL BARB LOCKING IS DESIGNED FOR THE MOST DEMANDING APPLICATION, WHERE THE EXTRA TENSILE STRENGTH & HIGHER RELIABILITY OF FIXING ARE REQURED. |
| COLOR | NATURAL OR BLACK |
| OPTION | HEAT & UV RESISTANT ARE AVAILABE OTHER COLORS ARE AVAILABLE UPON REQUEST |
| EASE CODE | LENGTH | WIDTH | THICKNESS | MAXIMUM BUNDLE DIAMETER | MINIMUM TENSILE STRENGTH |
| mm(inch) | mm(inch) | mm(inch) | mm(inch) | N(lbs) | |
| CT-PA-SSBL-102/2.4 | 102(4.02) | 2.4(0.094) | 1.0(0.039) | 23(0.91) | 80(18) |
| CT-PA-SSBL-201/2.4 | 201(7.91) | 51(2.01) | |||
| CT-PA-SSBL-100/3.0 | 100(3.94) | 3.0(0.118) | 22(0.87) | ||
| CT-PA-SSBL-155/3.6 | 155(6.10) | 3.6(0.142) | 1.2(0.047) | 35(1.38) | 180(40) |
| CT-PA-SSBL-284/3.6 | 284(11.18) | 80(3.15) | |||
| CT-PA-SSBL-368/3.6 | 368(14.49) | 104(4.09) | |||
| CT-PA-SSBL-200/3.8 | 200(7.87) | 3.8(0.150) | 50(1.97) | ||
| CT-PA-SSBL-186/4.8 | 186(7.32) | 4.8(0.189) | 1.5(0.059) | 45(1.77) | 220(50) |
| CT-PA-SSBL-250/4.8 | 250(9.84) | 65(2.56) | |||
| CT-PA-SSBL-295/4.8 | 295(11.61) | 79(3.11) | |||
| CT-PA-SSBL-361/4.8 | 361(14.21) | 100(3.94) | |||
| CT-PA-SSBL-376/4.8 | 376(14.80) | 107(4.21) | |||
| CT-PA-SSBL-200/6.0 | 200(7.87) | 6.0(0.236) | 50(1.97) | ||
| CT-PA-SSBL-221/7.0 | 221(8.70) | 7.0(0.276) | 1.6(0.063) | 51(2.01) | 500(112) |
| CT-PA-SSBL-300/7.0 | 300(11.81) | 80(3.15) | |||
| CT-PA-SSBL-378/7.0 | 378(14.88) | 102(4.02) | |||
| CT-PA-SSBL-460/7.0 | 460(18.11) | 127(5.00) | |||
| CT-PA-SSBL-538/7.0 | 538(21.18) | 152(5.98) | |||
| CT-PA-SSBL-699/7.0 | 699(27.52) | 203(7.99) | |||
| CT-PA-SSBL-240/8.0 | 240(9.45) | 8.0(0.315) | 57(2.24) | ||
| CT-PA-SSBL-300/8.0 | 300(11.81) | 76(2.99) | |||
| CT-PA-SSBL-350/8.0 | 350(13.78) | 92(3.62) | |||
| CT-PA-SSBL-400/8.0 | 400(15.75) | 108(4.25) | |||
| CT-PA-SSBL-300/10 | 300(11.81) | 10.0(0.394) | 1.7(0.067) | 77(3.03) | 550(124) |
| CT-PA-SSBL-350/10 | 350(13.78) | 97(3.82) | |||
| CT-PA-SSBL-400/10 | 400(15.75) | 109(4.29) | |||
| CT-PA-SSBL-450/10 | 450(17.72) | 124(4.88) |
