TU-CAU
ES
8536900000
| Quantity: | |
|---|---|

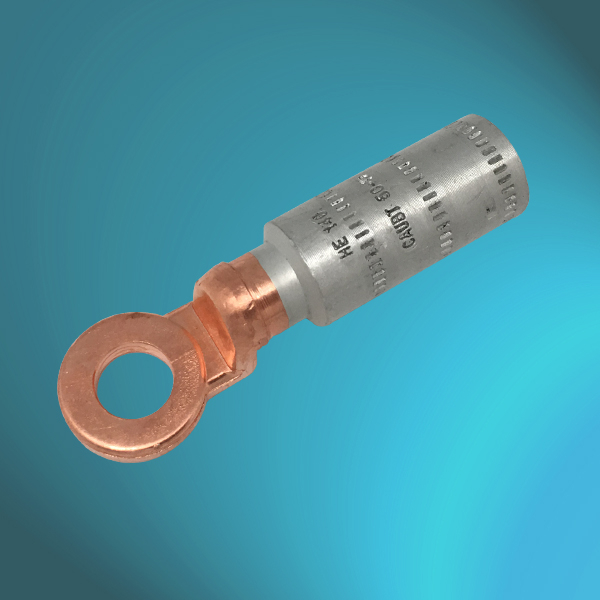

Round Palm Bi-metallic Lugs
SPECIFICATIONS | ||||||||
MATERIAL: | Cu, AL-1050A | |||||||
PURITY | CU > 99.9% | |||||||
HIGH CONDUCTIVITY COPPER TO BS2871 | ||||||||
BRIGHT SELF FINISH | ||||||||
ALL DIMENSIONS ARE IN MM | ||||||||
EASE CODE | φ | D | d | L | L1 | B | G | H |
TU-C0AU-16 | 10.5 | 16 | 5.5 | 80 | 41.5 | 20 | 12 | 4 |
TU-C0AU-25 | 10.5 | 16 | 6.5 | 80 | 41.5 | 20 | 12 | 4 |
TU-C0AU-35 | 12.8 | 16 | 8 | 86.5 | 41.5 | 24 | 12 | 5 |
TU-C1AU-50 | 12.8 | 20 | 9 | 86.5 | 41.5 | 24 | 14.8 | 5 |
TU-C1AU-70 | 12.8 | 20 | 11 | 86.5 | 41.5 | 24 | 14.8 | 5 |
TU-C1AU-95 | 12.8 | 20 | 12.5 | 86.5 | 41.5 | 24 | 14.8 | 5 |
TU-C2AU-120 | 12.8 | 25 | 13.7 | 111 | 57 | 30 | 18.8 | 6 |
TU-C2AU-150 | 12.8 | 25 | 15.5 | 111 | 57 | 30 | 18.8 | 6 |
TU-C4AU-185 | 12.8 | 32 | 17 | 119.5 | 57 | 35 | 23.8 | 7 |
TU-C4AU-240 | 12.8 | 32 | 19.5 | 119.5 | 57 | 35 | 23.8 | 7 |
TU-C5AU-300 | 16.5 | 40 | 23.3 | 165 | 90.5 | 40 | 28 | 9 |
TU-C5AU-400 | 16.5 | 40 | 26 | 165 | 90.5 | 40 | 28 | 9 |
Round Palm Bi-metallic Lugs
SPECIFICATIONS | ||||||||
MATERIAL: | Cu, AL-1050A | |||||||
PURITY | CU > 99.9% | |||||||
HIGH CONDUCTIVITY COPPER TO BS2871 | ||||||||
BRIGHT SELF FINISH | ||||||||
ALL DIMENSIONS ARE IN MM | ||||||||
EASE CODE | φ | D | d | L | L1 | B | G | H |
TU-C0AU-16 | 10.5 | 16 | 5.5 | 80 | 41.5 | 20 | 12 | 4 |
TU-C0AU-25 | 10.5 | 16 | 6.5 | 80 | 41.5 | 20 | 12 | 4 |
TU-C0AU-35 | 12.8 | 16 | 8 | 86.5 | 41.5 | 24 | 12 | 5 |
TU-C1AU-50 | 12.8 | 20 | 9 | 86.5 | 41.5 | 24 | 14.8 | 5 |
TU-C1AU-70 | 12.8 | 20 | 11 | 86.5 | 41.5 | 24 | 14.8 | 5 |
TU-C1AU-95 | 12.8 | 20 | 12.5 | 86.5 | 41.5 | 24 | 14.8 | 5 |
TU-C2AU-120 | 12.8 | 25 | 13.7 | 111 | 57 | 30 | 18.8 | 6 |
TU-C2AU-150 | 12.8 | 25 | 15.5 | 111 | 57 | 30 | 18.8 | 6 |
TU-C4AU-185 | 12.8 | 32 | 17 | 119.5 | 57 | 35 | 23.8 | 7 |
TU-C4AU-240 | 12.8 | 32 | 19.5 | 119.5 | 57 | 35 | 23.8 | 7 |
TU-C5AU-300 | 16.5 | 40 | 23.3 | 165 | 90.5 | 40 | 28 | 9 |
TU-C5AU-400 | 16.5 | 40 | 26 | 165 | 90.5 | 40 | 28 | 9 |
