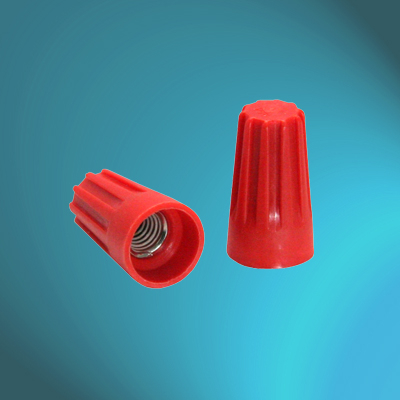

Twist Wire Connectors without Wing
SPECIFICATIONS | |||||
INSERTS: | COPPER, TIN-PLATED | ||||
STANDARD: | RoSH COMPLIANT | ||||
FEATURE: | SPRING DESIGN PROVIDE MORE SECURE CONNECTION ( STRIP WIRES BEFORE APPLICTION) | ||||
EASE CODE | SUITABLE WIRES | DIMENSIONS (MM) | COLOUR | ||
W | H | D | |||
CTW-G | MIN.#20 *1 + #22 *1 MAX.#16 * 2 | 8.5 | 6.5 | 15 | GREY |
CTW-B | MIN.#20 * 3 MAX.#16*3 | 10 | 7.5 | 18 | BLUE |
CTW-O | MIN.#20*3 MAX.#16*3+#18*1 | 11.5 | 9.5 | 20 | ORANGE |
CTW-Y | MIN.#14*1+#18*1 MAX.#14*4+#18*1 | 13.5 | 10.8 | 23.5 | YELLOW |
CTW-R | MIN.#14*2 MAX.#10*2+#12*2 | 15.5 | 12.7 | 23.5 | RED |
