VINYL INSULATED RING TERMINALS - SINGLE CRIMP
RED INSULATION: CONDUCTOR SIZE 0.5-1.5mm² / 22-16AWG.
BULE INSULATION: CONDUCTOR SIZE 1.5-2.5mm² / 16-14AWG.
YELLOW INSULATION: CONDUCTOR SIZE 4.0-6.0mm² / 12-10AWG.
HIGH GRADE PVC INSULATION MAKES CRIMPING EASY WHILST ENSURING COMPLETE INTEGRITY OF TERMINATION.
A COMPLETE RANGE OF PRE-INSULATED TERMINALS THAT COMBINE HIGH QUALITY WITH COMPETITIVE PRICING.
SPECIFICATIONS | ||||||
BASE MATERIAL | PVC INSULATION / COPPER TERMINAL | |||||
PLATING | ELECTRO-TINNED | |||||
INSULATION MATERIAL | VINYL | |||||
STANDARD | UL APPROVAL | |||||
MAX. WORKING TEMP. | 75ºC | |||||
MAX. WORKING VOLTAGE | 600V | |||||

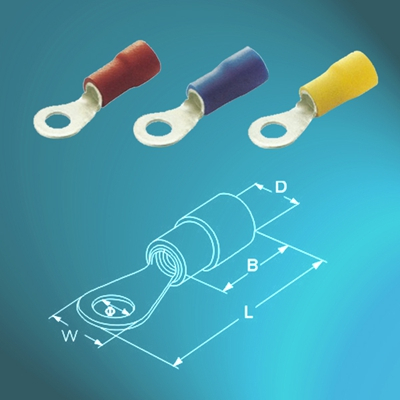

EASE CODE | DIMENSION (mm) | WIRE RANGE | ||||
Φ | D | W | B | L | mm² | |
TM-RN-IN-3.2R | 3.2 | 4 | 5.5 | 10.4 | 17.3 | 0.5-1.5 (22-16) |
TM-RN-IN-3.7R | 3.7 | 4 | 5.5 | 10.4 | 17.3 | |
TM-RN-IN-3.7RB | 3.7 | 4 | 6.6 | 10.4 | 20.3 | |
TM-RN-IN-4.3R | 4.3 | 4 | 6.6 | 10.4 | 20.3 | |
TM-RN-IN-4.3RB | 4.3 | 4 | 8 | 10.4 | 21.8 | |
TM-RN-IN-5.3R | 5.3 | 4 | 8 | 10.4 | 21.8 | |
TM-RN-IN-6.4R | 6.4 | 4 | 11.6 | 10.4 | 27.5 | |
TM-RN-IN-8.4R | 8.4 | 4 | 11.6 | 10.4 | 27.5 | |
TM-RN-IN-10.5R | 10.5 | 4 | 13.6 | 10.4 | 31.8 | |
TM-RN-IN-3.2B | 3.2 | 4.6 | 8.5 | 10.4 | 22.3 | 1.5-2.5 (16-14) |
TM-RN-IN-3.7B | 3.7 | 4.6 | 6.6 | 10.4 | 19.8 | |
TM-RN-IN-3.7BB | 3.7 | 4.6 | 8.5 | 10.4 | 22.3 | |
TM-RN-IN-4.3B | 4.3 | 4.6 | 6.6 | 10.4 | 19.8 | |
TM-RN-IN-4.3BB | 4.3 | 4.6 | 8.5 | 10.4 | 22.3 | |
TM-RN-IN-5.3B | 5.3 | 4.6 | 9.5 | 10.4 | 22.3 | |
TM-RN-IN-6.4B | 6.4 | 4.6 | 12 | 10.4 | 27.3 | |
TM-RN-IN-8.4B | 8.4 | 4.6 | 12 | 10.4 | 27.3 | |
TM-RN-IN-10.5B | 10.5 | 4.6 | 13.6 | 10.4 | 30.8 | |
TM-RN-IN-3.7Y | 3.7 | 6.6 | 9.5 | 13.5 | 26.5 | 4.0-6.0 (12-10) |
TM-RN-IN-4.3Y | 4.3 | 5.6 | 9.5 | 13.3 | 26.3 | |
TM-RN-IN-4.3YB | 4.3 | 6.6 | 9.5 | 13.5 | 26.5 | |
TM-RN-IN-5.3Y | 5.3 | 5.6 | 9.5 | 13.3 | 26.3 | |
TM-RN-IN-5.3YB | 5.3 | 6.6 | 9.5 | 13.5 | 26.5 | |
TM-RN-IN-6.4Y | 6.4 | 5.6 | 12 | 13.3 | 27.7 | |
TM-RN-IN-6.4YB | 6.4 | 6.6 | 12 | 13.5 | 32.5 | |
TM-RN-IN-6.4YBB | 6.4 | 6.6 | 12 | 13.5 | 29.2 | |
TM-RN-IN-8.4Y | 8.4 | 5.6 | 12 | 13.3 | 27.7 | |
TM-RN-IN-8.4YB | 8.4 | 6.6 | 15 | 13.5 | 34.5 | |
TM-RN-IN-10.5Y | 10.5 | 6.6 | 15 | 13.5 | 34.5 | |
