High Temperature Ceramic Terminal Block
You are here: Home » Product Category » Terminal Blocks » Ceramic Terminal Block » High Temperature Ceramic Terminal Block

Product Categories

Share to:

High Temperature Ceramic Terminal Block

OEM Type
Housing Material: Porcelain (Steatite)
Inserts: Nickel Plated Brass
Temperature: -40ºC~800ºC
1-4 poles, 2.5mm²-16mm²
Standard: CE (BS EN 60998)

  • CPO-DQ
  • ES
  • 8547100000
Quantity:

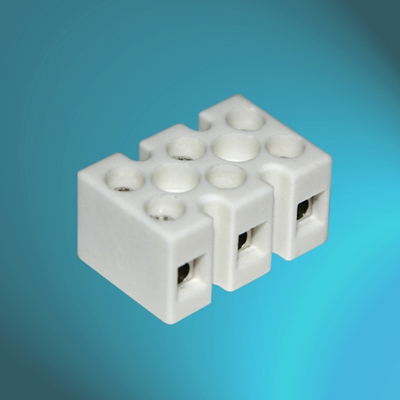

Ceramic Terminal Blocks (Customized Type-2)


Applications:

Ceramic terminal blocks are used in extremely high temperature applications such as hot melt glue guns, furnaces, heaters, process equipment and machinary.

Industries they are used in:

Electric appliance industry/Automotive industry/Mechanical industry

Engineering industry/Electrical heating element industry/LED Lighting Industry


SPECIFICATIONS

INSERTS:

NICKEL PLATED BRASS

HOUSING:

CERAMIC (STEATITE CERAMIC & ALUMINA)

TEMP.:

1000℃

SCREWS:

GALVANISED STEEL

STANDARD:

CE (BS EN 60998)

COLOR:

WHITE

EASE CODE

CROSS SECTION

CURRENT RANGE

RATED VOLTAGE

DIMENSIONS (mm)

W

L

Φ1

Φ2

D

d

H

CPO-DQ13-5A-3P

4 mm2

5-32A

450V

17.5

29.8

5.4

6.1

10.5

7.5

15.5

Cross Section: rated for rigid wire and cables (if for flexible wire, it should be reduced one-step, i.e. 6mm2  is 4mm2
Φ1 wire entry hole diameter
Φ2 fixing hole diameter
