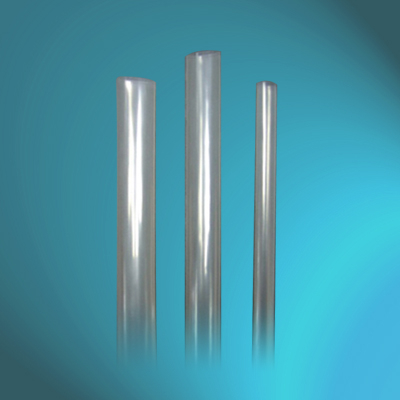

150 ℃ & 175 ℃ Heat-Shrink Kynar Tubing

MATERIAL:

POLYVINYLIDENE FLUORIDE

FEATURE:

Flexible, Flame Retardant

WALL TYPE:

THIN

SHRINK TEMP:

155℃

WORK TEMP:

-55℃-175℃

EASE CODE

AS SUPPLIED (mm)

AFTER RECOVERY (mm)

INSIDE DIAMETER

WALL THICHNESS

INSIDE DIAMETER

WALL THICHNESS

(D)

(T)

(d)

(t)

HS-KN-1.2/0.6

≥1.2

0.1±0.05

≤0.6

0.25±0.05

HS-KN-1.6/0.8

≥1.6

0.1±0.05

≤0.8

0.25±0.05

HS-KN-2.4/1.2

≥2.4

0.13±0.06

≤1.2

0.25±0.05

HS-KN-3.2/1.6

≥3.2

0.15±0.06

≤1.6

0.25±0.05

HS-KN-4.8/2.4

≥4.8

0.15±0.06

≤2.4

0.25±0.05

HS-KN-6.4/3.2

≥6.4

0.15±0.06

≤3.2

0.33±0.05

HS-KN-9.5/4.8

≥9.5

0.18±0.08

≤4.8

0.33±0.05

HS-KN-12.7/6.4

≥12.7

0.18±0.08

≤6.4

0.33±0.05

HS-KN-19.1/9.5

≥19.1

0.22±0.08

≤9.5

0.43±0.08

HS-KN-25.4/12.7

≥25.4

0.28±0.08

≤12.7

0.48±0.08

HS-KN-38.1/19.1

≥38.1

0.30±0.08

≤19.1

0.48±0.08

The data above are for reference only. 150℃is available upon request.

Min. Shrink Temperature

155℃

Operation Temperature

-55℃-175℃

Specific Gravity

1.78g/cm³

ASTM D792

Tensile Strength

≥34.5MPa

ASTM D2671

Elongation At Break

≥150%

ASTM D2671

After Aging Elongation

≥50%

225℃,168h

Heat Shock

No Cracking

275℃,4h

Cold Bend

No Cracking

-55℃,4h

Dielectric Strength

≥31.5kV /mm

ASTM D2671

Volume Resistivity

≥1.0*10¹³Ω-cm

ASTM D257

Flammability Rating

Pass, VW-1

UL - 224
