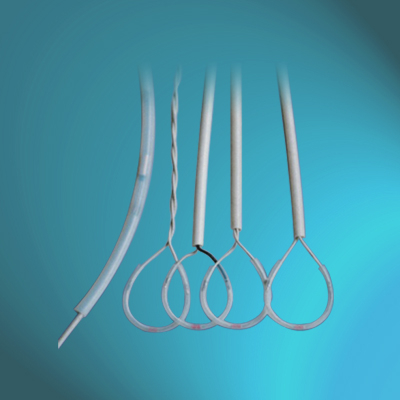

260℃ Non Heat Shrinkable Teflen Tubing

MATERIAL:

TEFLEN

FEATURE:

HIGHLY FLAME RETARDANT

CHEMICALLY INERT

SEMI-RIGID

WORK TEMP.:

-55°C -260°C

STANDARD:

UL224

EASE CODE

SIZE

INSIDE DIAMETER (mm)

OUTSIDE DIAMETER (mm)

AWG

Min

Normal

Max

S-Type

T-Type

L-Type

NHS-TF-30

30

0.25

0.3

0.38

0.76

0.76

0.6

NHS-TF-28

28

0.33

0.38

0.46

0.84

0.84

0.68

NHS-TF-26

26

0.41

0.46

0.53

0.92

0.92

0.76

NHS-TF-24

24

0.51

0.56

0.66

1.16

1.06

0.86

NHS-TF-23

23

0.58

0.66

0.74

1.26

1.16

0.96

NHS-TF-22

22

0.66

0.71

0.81

1.31

1.21

1.01

NHS-TF-21

21

0.74

0.81

0.89

1.41

1.31

1.11

NHS-TF-20

20

0.81

0.86

0.97

1.66

1.46

1.16

NHS-TF-19

19

0.91

0.96

1.07

1.76

1.56

1.26

NHS-TF-18

18

1.01

1.07

1.17

1.87

1.67

1.37

NHS-TF-17

17

1.14

1.19

1.32

1.99

1.79

1.49

NHS-TF-16

16

1.29

1.34

1.47

2.14

1.94

1.64

NHS-TF-15

15

1.45

1.5

1.65

2.3

2.1

1.8

NHS-TF-14

14

1.62

1.68

1.83

2.48

2.28

2.08

NHS-TF-13

13

1.83

1.93

2.05

2.73

2.53

2.33

NHS-TF-12

12

2.05

2.16

2.31

2.96

2.77

2.56

NHS-TF-11

11

2.31

2.41

2.57

3.21

3.01

2.81

NHS-TF-10

10

2.59

2.69

2.84

3.49

3.29

3.09

NHS-TF-9

9

2.9

3

3.15

4

3.76

3.4

NHS-TF-8

8

3.28

3.38

3.53

4.38

4.14

3.78

NHS-TF-7

7

3.65

3.76

3.94

4.76

4.52

4.16

NHS-TF-6

6

4.11

4.22

4.41

5.22

4.98

4.72

NHS-TF-5

5

4.62

4.72

4.95

5.72

5.48

5.22

NHS-TF-4

4

5.18

5.28

5.53

6.28

6.04

5.78

NHS-TF-3

3

5.81

5.94

6.2

6.94

6.7

6.44

NHS-TF-2

2

6.55

6.68

6.93

7.68

7.44

7.18

NHS-TF-1

1

7.34

7.46

7.75

8.46

8.22

7.96

NHS-TF-0

0

8.26

8.38

8.69

9.38

9.14

8.88

Specific Gravity

ASTM D792

g/cm³

2.16

Tensile Strength

ASTM D638

MPa

24.5

Ultimate Elongation

ASTM D638

%

350

Flexural Modulus

ASTM D790

Mpa

490

Impact Strength

ASTM D256

No Breakdown

Hardness

ASTM D2240

Shore D

55

Coefficient of Friction

0.1

Melting Point

°C

327

Operating Temperature 20000hrs with 50% Retention of Ultimate Elongation

°C

260

Flammability

UL-224

VW-1

Dieletric Constant At 10³-10⁶Hz

ASTM D150

2.1

Dissipation Factor At 10⁶Hz

ASTM D150

0.0002

Arc Resistance

ASTM D495

s

>300

Volume Resistivity

ASTM D257

Ω -cm

>10¹⁸

Weather Resistance

WEATHER-O-Meter (2000hrs)

No Breakdown

Solvent Resistance

ASTM D543

Excellent

Chemical Resistance

ASTM D543

Excellent
