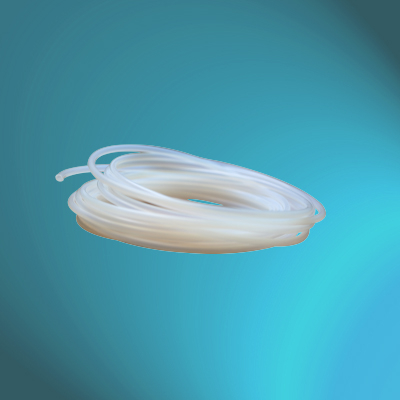

Heat-Shrink Teflen Bubing

SPECIFICATIONS
MATERIAL: Teflen
FEATURE: Highly Flame Retardant
WORK TEMP.: -55°C -260°C
STANDARD: UL224

  • HS-TF
  • ES
  • 3917320000
Quantity:

Heat-Shrink Teflen Bubing


SPECIFICATIONS

MATERIAL:

Teflen

FEATURE:

Highly Flame Retardant

WORK TEMP.:

-55°C -260°C

STANDARD:

UL224

EASE CODE

SIZE

AS SUPPLIED (mm)

AFTER RECOVERY (mm)

INSIDE DIAMETER

WALL THICKNESS

INSIDE DIAMETER

WALL THICKNESS

(D)

(T)

(d)

(t)

HS-TF-30

AWG30

0.5±0.2

0.15±0.05

≤0.40

0.25±0.05

HS-TF-26

AWG26

1.0±0.2

0.15±0.05

≤0.50

0.25±0.05

HS-TF-22

AWG22

1.5±0.2

0.20±0.05

≤0.90

0.25±0.05

HS-TF-20

AWG20

2.0±0.2

0.20±0.05

≤1.30

0.30±0.05

HS-TF-18

AWG18

2.5±0.2

0.20±0.05

≤1.50

0.30±0.05

HS-TF-16

AWG16

3.0±0.2

0.20±0.05

≤1.80

0.30±0.05

HS-TF-14

AWG14

3.5±0.2

0.20±0.05

≤2.00

0.30±0.05

HS-TF-12

AWG12

4.0±0.3

0.20±0.05

≤2.50

0.30±0.05

HS-TF-10

AWG10

4.5±0.3

0.20±0.05

≤2.80

0.30±0.05

HS-TF-8

AWG8

5.0±0.3

0.20±0.05

≤3.00

0.30±0.05

HS-TF-6

AWG6

6.0±0.3

0.25±0.05

≤3.80

0.38±0.05

HS-TF-4

AWG4

7.0±0.3

0.25±0.05

≤4.00

0.38±0.05

HS-TF-2

AWG2

8.0±0.3

0.25±0.05

≤4.80

0.38±0.05

HS-TF-0

AWG0

9.0±0.3

0.25±0.05

≤5.00

0.38±0.05


Technical Datasheet

PROPERTY

DATA

TEST METHOD

Specific Gravity

2.16g/cm3

ASTM D792

Operating Temperature

-55°C-260°C


Min. Full Recovery Temperature

327°C


Tensile Strength

24.5MPa

ASTM D638

Elongation At Break

350%

ASTM D638

Bending Modulus

490MPa

ASTM D790

Impact Strength

No Cracking

ASTM D256(23°C-54°Cj/m)

Hardness(Shore)

55 Shore D

ASTM D2240

Coefficient Of Dynamic Friction

0.1


Flammability

VW-1

UL-224

Dieletric Constant At 103-106Hz

2.1

ASTM D150

Dielectric Dissipation Factor At 106Hz

0.0002

ASTM D150

Arc Resistance

>300s

ASTM D495

Linear Coefficient Of Expansion

>1018Ω-cm

ASTM D257

Weather Resistance

No Cracking

Weather-o-Meter (2000hrs)

Fluid Resistance

EXCELLENT

ASTM D543

Chemical Resistance

EXCELLENT

ASTM D543
