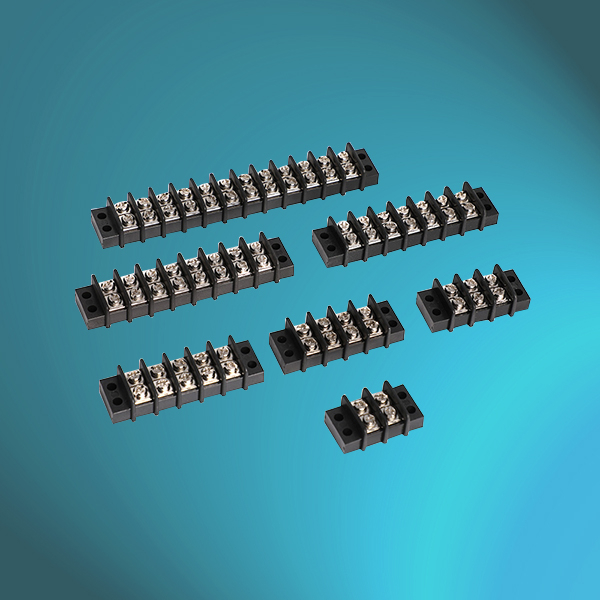

Barrier block Strips -Standard Type

Housing Material: PA66
Pin Header: Tin-plated Brass
Screws: Nickel-plated Steel, M3.5
Working Termp.: -40ºC ~ +105ºC
Standard: CE(BS EN 60998)
Free Samples available

  • CBS
  • ES
  • 8538900000
Quantity:

Barrier Strips Standard Type


SPECIFICATIONS

HOUSING:

POLYAMIDE (PA 66, UL94 V0)

SCREWS:

M3.5,STEEL NICKEL PLATED

PIN HEADER:

BRASS, TIN PLATED

TEMP.:

-40℃ ~ +105℃

STANDARD:

CE(BS EN 60998)

WITHSTANDING VOLTAGE:

AC 2000V/ 1 MIN

INSULATION RESISTANCE:

500MΩ / DC100V

MAX. TORQUE VALUE:

0.8Nm

COLOR:

WHITE,BLACK AND OTHER COLOURS ARE AVAILABLE UPON REQUEST.

EASE CODE

WIRE RANGE

CURRENT RANGE

RATED VOLTAGE

DIMENSIONS (mm)

L1

L2

W1

W2

D

d

H

h

Φ

CBS-4-2P

22-12AWG

4 mm2

20A/32A

300V/750V

36.0

28.5

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-3P

22-12AWG

4 mm2

20A/32A

300V/750V

45.5

38.0

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-4P

22-12AWG

4 mm2

20A/32A

300V/750V

55.0

47.5

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-5P

22-12AWG

4 mm2

20A/32A

300V/750V

64.5

57.0

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-6P

22-12AWG

4 mm2

20A/32A

300V/750V

74.0

66.5

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-7P

22-12AWG

4 mm2

20A/32A

300V/750V

83.5

76.0

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-8P

22-12AWG

4 mm2

20A/32A

300V/750V

93.0

85.5

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-9P

22-12AWG

4 mm2

20A/32A

300V/750V

102.5

95.0

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-10P

22-12AWG

4 mm2

20A/32A

300V/750V

112.0

104.5

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-11P

22-12AWG

4 mm2

20A/32A

300V/750V

121.5

114.0

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-12P

22-12AWG

4 mm2

20A/32A

300V/750V

131.0

123.5

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-13P

22-12AWG

4 mm2

20A/32A

300V/750V

140.5

133.0

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-14P

22-12AWG

4 mm2

20A/32A

300V/750V

150.0

142.5

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-15P

22-12AWG

4 mm2

20A/32A

300V/750V

159.5

152.0

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-16P

22-12AWG

4 mm2

20A/32A

300V/750V

169.0

161.5

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-17P

22-12AWG

4 mm2

20A/32A

300V/750V

178.5

171.0

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-18P

22-12AWG

4 mm2

20A/32A

300V/750V

188.0

180.5

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-19P

22-12AWG

4 mm2

20A/32A

300V/750V

197.5

190.0

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-20P

22-12AWG

4 mm2

20A/32A

300V/750V

207.0

199.5

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-21P

22-12AWG

4 mm2

20A/32A

300V/750V

216.5

209.0

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-22P

22-12AWG

4 mm2

20A/32A

300V/750V

226.0

218.5

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-23P

22-12AWG

4 mm2

20A/32A

300V/750V

235.5

228.0

18.5

21.6

9.5

8.0

13.0

7.0

4.0

CBS-4-24P

22-12AWG

4 mm2

20A/32A

300V/750V

245.0

237.5

18.5

21.6

9.5

8.0

13.0

7.0

4.0

Cross Section: rated for rigid wire and cables (if for flexible wire, it should be reduced  one-step, i.e. 6mm2  is 4mm2

Φ1 wire entry hole diameter

Φ2 fixing hole diameter
