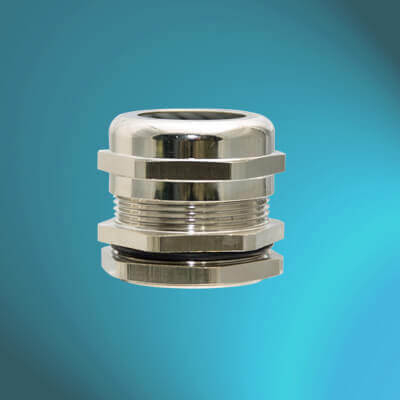

Brass Cable Glands
Cable glands are used for fixing cables and provide the effecitve protection against dust, water, oil penetrating the electrical distribution box, electromechanical control panel and other instruments. It can protect cables effectively because of the innovative design for the Seal and Clamp, wide clamping range, strong resistence against the tensile strength.
Flame Rating: UL94 V0
Metric type: M12, M16, M20, M20, M25, M32, M40, M50, M63;
PG Type: PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48
As our European partners said, they passed several harsh environment conditions tests: humidity / dust / salt...
They also passed extensive pressure tests, all the rubber parts show no (or little) damage and the IP protection holds.
SPECIFICATIONS | |||||||
MATERIAL: | BRASS NICKEL PLATED | ||||||
SEALING: | NEOPRENE | ||||||
CLAW: | PA6 | ||||||
STANDARD: | RoHS;IP68 | ||||||
TEMP.: | -40°C ~ +100°C, SHORT TIME+120°C | ||||||
EASE Code | Thread Size | cable range | H | d | L | Locknut | |
t | spanner size | ||||||
mm | mm | mm | mm | mm | mm | ||
CBG-M12 | M12x1.5 | 3-7 | 14.5 | 8.6 | 6 | 2.5 | 14 |
CBG-M16 | M16x1.5 | 4-8 | 17 | 11.5 | 7 | 2.8 | 18 |
CBG-M18 | M18x1.5 | 6-10 | 17 | 14 | 7 | 3 | 20 |
CBG-M20 | M20x1.5 | 8-12 | 18.7 | 15.8 | 8 | 3.2 | 22 |
CBG-M22 | M22x1.5 | 10-14 | 19.2 | 17.6 | 8 | 3.2 | 24 |
CBG-M25 | M25x1.5 | 10-14 | 19.3 | 17.2 | 8 | 3.3 | 27 |
CBG-M32 | M32x1.5 | 15-22 | 22 | 26.5 | 9 | 3.5 | 34 |
CBG-M40 | M40x1.5 | 22-28 | 25 | 34 | 10 | 4.5 | 43 |
CBG-M50 | M50x1.5 | 25-32 | 26.8 | 41.3 | 10 | 5 | 55.2 |
CBG-M63 | M63x1.5 | 37-44 | 31 | 53 | 12 | 5.5 | 68 |
CBG-M75 | M75x1.5 | 42-52 | 35 | 60.5 | 15 | 6 | 78 |
CBG-PG7 | PG7 | 3-7 | 14.5 | 8.6 | 6 | 2.5 | 14 |
CBG-PG9 | PG9 | 4-8 | 17 | 11.5 | 7 | 2.8 | 18 |
CBG-PG11 | PG11 | 6-10 | 17 | 14 | 7 | 3 | 20 |
CBG-PG13.5 | PG13.5 | 8-12 | 18.7 | 15.8 | 8 | 3.2 | 22 |
CBG-PG16 | PG16 | 10-14 | 20.5 | 17.6 | 8 | 3.2 | 25 |
CBG-PG21 | PG21 | 13-18 | 20 | 23.4 | 8 | 3.3 | 31 |
CBG-PG29 | PG29 | 18-25 | 23.5 | 31.5 | 9 | 4 | 40 |
CBG-PG36 | PG36 | 25-32 | 27 | 41.2 | 10 | 5 | 50 |
CBG-PG42 | PG42 | 32-38 | 27 | 47.6 | 10 | 5 | 58 |
CBG-PG48 | PG48 | 37-44 | 31 | 53.5 | 12 | 5.5 | 64 |
