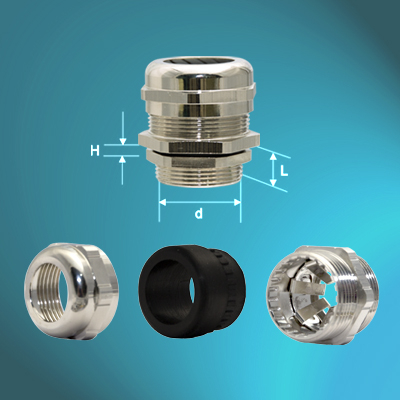

EMC Brass Cable Glands
SPECIFICATION | |||||||
MATERIAL: | BRASS NICKEL PLATED | ||||||
SEALING: | NEOPRENE | ||||||
CLAW: | PA6 | ||||||
STANDARD: | RoHS;IP68 | ||||||
TEMP.: | -40°C ~ +100°C, SHORT TIME+120°C | ||||||
EASE CODE | SIZE | CABLE RANGE | d | L | H | LOCKNUT | |
(MM) | (MM) | (MM) | (MM) | t | SPANNER SIZE | ||
CBG-S-M16 | M16×1.5 | 4-8 | 16.0 | 7.0 | 6.0 | 3.2 | 18.0 |
CBG-S-M20 | M20×1.5 | 6-12 | 20.0 | 8.0 | 7.0 | 3.0 | 22.0 |
CBG-S-M25 | M25×1.5 | 10-16 | 25.0 | 8.0 | 9.0 | 3.0 | 27.0 |
CBG-S-M32 | M32×1.5 | 15-22 | 32.0 | 9.0 | 9.0 | 3.5 | 35.0 |
CBG-S-M40 | M40×1.5 | 21-30 | 40.0 | 10.0 | 11.0 | 4.5 | 50.0 |
CBG-S-M50 | M50×1.5 | 30-38 | 50.0 | 10.0 | 11.0 | 5.0 | 57.0 |
CBG-S-PG9 | PG9 | 4-8 | 15.2 | 7.0 | 6.0 | 2.5 | 18.0 |
CBG-S-PG11 | PG11 | 5-10 | 18.6 | 7.0 | 6.0 | 3.0 | 20.0 |
CBG-S-PG13.5 | PG13.5 | 6-12 | 20.4 | 8.0 | 7.0 | 3.0 | 22.0 |
CBG-S-PG16 | PG16 | 8-14 | 22.5 | 8.0 | 7.0 | 3.0 | 24.0 |
CBG-S-PG21 | PG21 | 13-18 | 28.3 | 8.0 | 9.0 | 3.5 | 30.0 |
CBG-S-PG29 | PG29 | 18-25 | 37.0 | 9.0 | 8.5 | 4.0 | 40.0 |
CBG-S-PG36 | PG36 | 22-32 | 47.0 | 10.0 | 10.0 | 4.5 | 50.0 |
