CCW-V0
ES
8536900000
| Availability: | |
|---|---|
| Quantity: | |

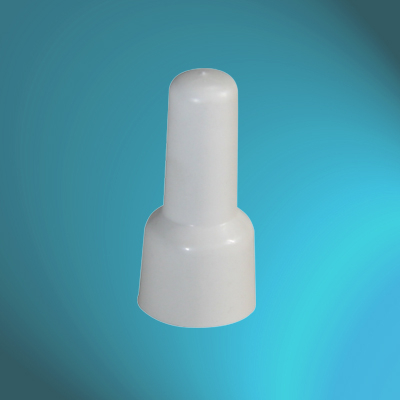

Crimp Wire Connectors - UL94 V0
SPECIFICATIONS | ||||||
INSERTS: | COPPER, TIN-PLATED | |||||
HOUSING: | POLYAMIDE (PA 66, UL94 V2) | |||||
TEMP.: | 105℃ | |||||
STANDARD: | UL, CE (BS EN 60998) | |||||
COLOUR: | NATURAL | |||||
FEATURE: | PASS 750℃ & 850℃ TEMPERATURE TEST FROM TUV | |||||
EASE CODE | CROSS SECTION | RATED VOLTAGE | DIMENSIONS (MM) | A.W.G. | ||
W | H | D | ||||
CCW-V0-C1 | 1.25mm2 | 300V | 7.8 | 18 | 2.6 | 22~16 |
CCW-V0-C2 | 2.0mm2 | 300V | 9.5 | 20 | 3.1 | 16~24 |
CCW-V0-C5 | 5.5mm2 | 300V | 12.5 | 25.5 | 4.4 | 12~14 |
CCW-V0-C8 | 8.0mm2 | 300V | 14.3 | 27.5 | 5.3 | 8.0 |
