FC-PV-HD
ES
83071000
| Quantity: | |
|---|---|

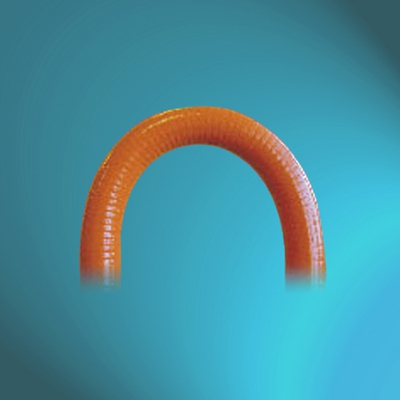

Flexible PVC Coated Steel Conduits Heavy Duty Type
SPECIFICATIONS | |||||
MATERIAL: | GALVANISED STEEL | ||||
COATING: | PVC | ||||
TEMP.: | -5℃-70℃ | ||||
STRUCTURE: | SQUARE LOCKING FOR 3/8" TO 1-1/4" INTERLOCKING FOR 1-1/2" TO 4" | ||||
COLOUR: | ORANGE OR ANY OTHER COLOUR | ||||
EASE CODE | SIZE | MINIMUM INSIDE DIA. | MAXIMUM OUTSIDE DIA. | BEND RADIUS | ROLL LENGTH |
inch | mm | mm | mm | m | |
FC-PV-HD-3/8 | 3/8 | 12.3 | 18 | 50 | 50 |
FC-PV-HD-1/2 | 1/2 | 15.8 | 21.3 | 65 | 50 |
FC-PV-HD-3/4 | 3/4 | 20.7 | 26.7 | 75 | 50 |
FC-PV-HD-1 | 1 | 26.4 | 33.4 | 100 | 50 |
FC-PV-HD-1-1/4 | 1-1/4 | 35.05 | 42.2 | 120 | 25 |
FC-PV-HD-1-1/2 | 1-1/2 | 40 | 48.3 | 140 | 25 |
FC-PV-HD-2 | 2 | 51.3 | 60.3 | 180 | 25 |
FC-PV-HD-2-1/2 | 2-1/2 | 63 | 73 | 240 | 10 |
FC-PV-HD-3 | 3 | 78 | 88.9 | 300 | 10 |
FC-PV-HD-4 | 4 | 101.6 | 114.3 | 350 | 10 |
