FC-PV-CR
ES
83071000
| Quantity: | |
|---|---|

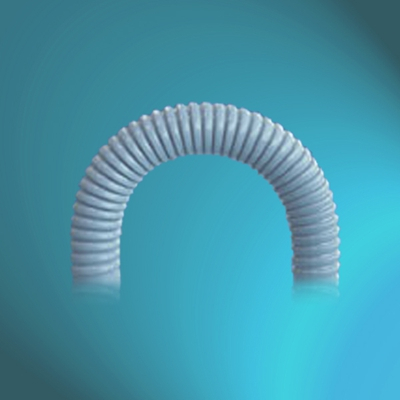

Flexible pvc Coated Steel Conduits
SPECIFICATIONS | |||||
MATERIAL: | GALVANISED STEEL | ||||
COATING: | PVC | ||||
TEMP.: | -5℃-70℃ | ||||
STRUCTURE: | SQUARE LOCKING FOR 1/4" TO 1-1/4" | ||||
INTERLOCKING FOR 1-1/2" TO 4" | |||||
COLOUR: | GREY OR ANY OTHER COLOUR | ||||
EASE CODE | SIZE | MINIMUM INSIDE DIA. | MAXIMUM OUTSIDE DIA. | BEND RADIUS | ROLL LENGTH |
inch | mm | mm | mm | m | |
FC-PV-CR-3/8 | 3/8 | 12.3 | 17.2 | 36 | 50 |
FC-PV-CR-1/2 | 1/2 | 15.8 | 20.7 | 50 | 50 |
FC-PV-CR-3/4 | 3/4 | 20.7 | 26.1 | 55 | 50 |
FC-PV-CR-1 | 1 | 26.4 | 32.2 | 65 | 50 |
FC-PV-CR-1-1/4 | 1-1/4 | 35.05 | 41.5 | 75 | 50 |
FC-PV-CR-1-1/2 | 1-1/2 | 40 | 47.2 | 86 | 25 |
FC-PV-CR-2 | 2 | 51.3 | 58.7 | 105 | 25 |
FC-PV-CR-2-1/2 | 2-1/2 | 63 | 72.4 | 160 | 15 |
FC-PV-CR-3 | 3 | 78 | 87.9 | 180 | 10 |
FC-PV-CR-4 | 4 | 101.6 | 112.3 | 210 | 10 |
