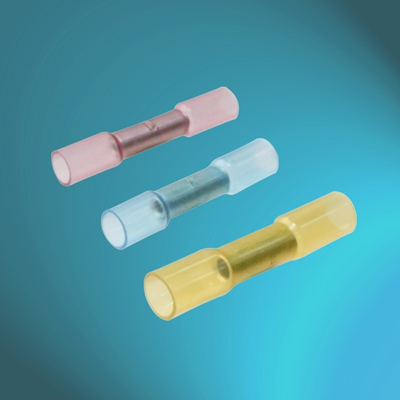

Heat Shrink Crimping Butts-IP68 Waterproof (Clear and Lower Shrink Temp.)
You are here: Home » Product Category » Heat Shrink Connectors » Heat Shrink Crimp Connector » Heat Shrink Crimping Butts-IP68 Waterproof (Clear and Lower Shrink Temp.)

Product Categories

Share to:

Heat Shrink Crimping Butts-IP68 Waterproof (Clear and Lower Shrink Temp.)

SPECIFICATION
TERMINAL MATERIAL: HIGH CONDUCTIVITY COPPER TUBULAR
INSULATION MATERIAL: PE
WORKING TEMP.: -40℃ ~ 105℃
MIN. SHRINK TEMP.: 60℃
FULLY RECOVERY TEMP.: 100℃
IP RATING: IP68

  • TM-HS-BU-HT
  • ES
  • 85369090
Quantity:

HEAT SHRINK CRIMPING BUTTS - IP68 WATER-TIGHT, HIGH CLEAR, LOWER SHRINK TEMP.


SPECIFICATION

TERMINAL MATERIAL:

HIGH CONDUCTIVITY COPPER TUBULAR

INSULATION MATERIAL:

PE

WORKING TEMP.:

-40℃ ~ 105℃

MIN. SHRINK TEMP.:

60℃

FULLY RECOVERY TEMP.:

100℃

IP RATING:

IP68

DESCRIPTION:

SHRINK RATIO 3:1

POLYAMIDE HOT-MELT ADHESIVE PROVIDES EXCELLENT WATERPROOF PROPERTY.

EXCELLENT TENSILE STRENGTH AND MECHANICAL DAMAGE RESISTANCE.

HIGH ELASTICITY KEEPS STEADY PERFORMANCE.

USERS CAN SEE THROUGH THE TRANSPARENT INSULATION TUBE TO MAKE SURE THE WIRES IN CORRECT OF TERMINATION.

EASE CODE

DIMENSION mm(inch)

WIRE RANGE

D1

B

L2

D2

A

L1

mm²
(A.W.G)

TM-HS-BU-1.5HT

3.8

1.7

15

5.8

4.7

36

0.5-1.5
(22-16)

TM-HS-BU-2.5HT

4.8

2.4

15

6.9

4.7

36

1.5-2.5
(16-14)

TM-HS-BU-6.0HT

5.7

3.6

15

8

6.7

42

4.0-6.0
(12-10)
