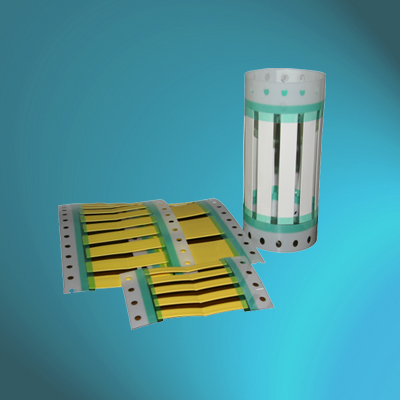

Heat-Shrink Marker Sleeves Marker Tubings

MATERIAL:

POLYOLEFIN (CROSSLINKED)

STANDARD:

UL 224 135°C & RoHS

WORK TEMP:

-55°C~135°C

RATIO:

 2:1 & 3:1

UL FILE:

E197895

EASE CODE

AS SUPPLIED (mm)

AFTER RECOVERY (mm)

Inside

Wall Thickness

Inside

Diameter

Diameter

(D)

(d)

   (t)

HS-MS-2.4/1.2

≥2.4

0.15 ± 0.05

≤1.2

HS-MS-3.2/1.6

≥3.2

0.15 ± 0.05

≤1.6

HS-MS-4.8/2.4

≥4.8

0.15 ± 0.05

≤2.4

HS-MS-6.4/3.2

≥6.4

0.15 ± 0.05

≤3.2

HS-MS-9.5/4.8

≥9.5

0.20 ± 0.05

≤4.8

HS-MS-12.7/6.4

≥12.7

0.20 ± 0.05

≤6.4

HS-MS-19.1/9.5

≥19.1

0.20 ± 0.05

≤9.5

HS-MS-25.4/12.7

≥25.4

0.20 ± 0.05

≤12.7

HS-MS-38.1/19.1

≥38.1

0.20 ± 0.05

≤19.1

HS-MS-50.8/25.4

≥50.8

0.25 ± 0.05

≤25.4

EASE CODE

AS SUPPLIED (mm)

AFTER RECOVERY (mm)

Inside

Wall Thickness

Inside

Diameter

Diameter

(D)

(d)

   (t)

HS-MS-2.4/0.8

≥2.4

0.20 ± 0.05

≤0.8

HS-MS-3.2/1.07

≥3.2

0.20 ± 0.05

≤1.07

HS-MS-4.8/1.6

≥4.8

0.20 ± 0.05

≤1.6

HS-MS-6.4/2.11

≥6.4

0.20 ± 0.05

≤2.11

HS-MS-9.5/3.2

≥9.5

0.20 ± 0.05

≤3.2

HS-MS-12.7/4.2

≥12.7

0.20 ± 0.05

≤4.2

HS-MS-19.1/6.35

≥19.1

0.30 ± 0.06

≤6.35

HS-MS-25.4/8.46

≥25.4

0.30 ± 0.06

≤8.46

HS-MS-38.1/12.7

≥38.1

0.30 ± 0.06

≤12.7

HS-MS-50.8/16.9

≥50.8

0.30 ± 0.06

≤16.9
