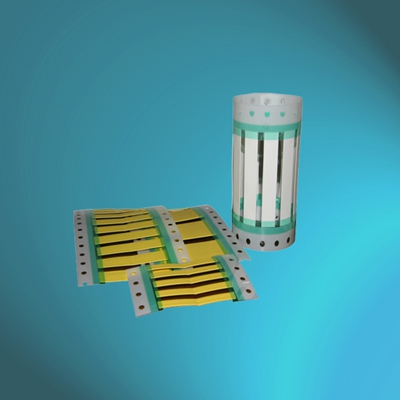

CM-HS-MS-PT-2.4/1.2
ES
3926909090
Availability: | |
---|---|
Quantity: | |
SPECIFICATION | |||||
MATERIAL: | POLYOLEFIN | ||||
FEATURE: | FLAME RETARDANT | ||||
WORK TEMP.: | -55°C~135°C | ||||
OPTION: | CUSTOMIZED PACKING IS AVAILABLE UPON REQUEST | ||||
EASE CODE . | |||||
AS SUPPLIED | AFTER RECOVERY | QUANTITY | |||
INSIDE DIA. | WALL THICKNESS | INSIDE DIA. | CONTINUOUS TYPE | LADDER TYPE | |
mm | mm | mm | m/roll | pcs/roll | |
CM-HS-MS-PT-2.4/1.2 | ≥2.40 | 0.15±0.05 | ≤1.20 | 30 | 2000 |
CM-HS-MS-PT-3.2/1.6 | ≥3.20 | 0.15±0.05 | ≤1.60 | 30 | 2000 |
CM-HS-MS-PT-4.8/2.4 | ≥4.80 | 0.15±0.05 | ≤2.40 | 30 | 2000 |
CM-HS-MS-PT-6.4/3.2 | ≥6.40 | 0.15±0.05 | ≤3.20 | 30 | 1500 |
CM-HS-MS-PT-9.5/4.8 | ≥9.50 | 0.20±0.05 | ≤4.80 | 30 | 1500 |
CM-HS-MS-PT-12.7/6.4 | ≥12.7 | 0.20±0.05 | ≤6.40 | 30 | 500 |
CM-HS-MS-PT-19.1/9.5 | ≥19.1 | 0.20±0.05 | ≤9.50 | 30 | 500 |
CM-HS-MS-PT-25.4/12.7 | ≥25.4 | 0.20±0.05 | ≤12.7 | 30 | 500 |
CM-HS-MS-PT-38.1/19 | ≥38.1 | 0.20±0.05 | ≤19.0 | 30 | 500 |
CM-HS-MS-PT-50.8/25.4 | ≥50.8 | 0.20±0.05 | ≤25.4 | 30 | 250 |
EASE CODE . | |||||
AS SUPPLIED | AFTER RECOVERY | QUANTITY | |||
INSIDE DIA. | WALL THICKNESS | INSIDE DIA. | CONTINUOUS TYPE | LADDER TYPE | |
mm | mm | mm | m/roll | pcs/roll | |
CM-HS-MS-PT-2.4/0.8 | ≥2.40 | 0.20±0.05 | ≤ 0.80 | 30 | 2000 |
CM-HS-MS-PT-3.2/1.07 | ≥3.20 | 0.20±0.05 | ≤ 1.07 | 30 | 2000 |
CM-HS-MS-PT-4.8/1.6 | ≥4.80 | 0.20±0.05 | ≤ 1.6 | 30 | 2000 |
CM-HS-MS-PT-6.4/2.11 | ≥6.40 | 0.20±0.05 | ≤ 2.11 | 30 | 1500 |
CM-HS-MS-PT-9.5/3.17 | ≥9.50 | 0.20±0.05 | ≤ 3.17 | 30 | 1500 |
CM-HS-MS-PT-12.7/4.22 | ≥12.7 | 0.20±0.05 | ≤ 4.22 | 30 | 500 |
CM-HS-MS-PT-19.1/6.4 | ≥19.1 | 0.30±0.06 | ≤ 6.40 | 30 | 500 |
CM-HS-MS-PT-25.4/8.47 | ≥25.4 | 0.30±0.06 | ≤ 8.47 | 30 | 500 |
CM-HS-MS-PT-38.1/12.7 | ≥38.1 | 0.30±0.06 | ≤ 12.7 | 30 | 500 |
CM-HS-MS-PT-50.8/217 | ≥50.8 | 0.30±0.06 | ≤ 17.0 | 30 | 250 |
SPECIFICATION | |||||
MATERIAL: | POLYOLEFIN | ||||
FEATURE: | FLAME RETARDANT | ||||
WORK TEMP.: | -55°C~135°C | ||||
OPTION: | CUSTOMIZED PACKING IS AVAILABLE UPON REQUEST | ||||
EASE CODE . | |||||
AS SUPPLIED | AFTER RECOVERY | QUANTITY | |||
INSIDE DIA. | WALL THICKNESS | INSIDE DIA. | CONTINUOUS TYPE | LADDER TYPE | |
mm | mm | mm | m/roll | pcs/roll | |
CM-HS-MS-PT-2.4/1.2 | ≥2.40 | 0.15±0.05 | ≤1.20 | 30 | 2000 |
CM-HS-MS-PT-3.2/1.6 | ≥3.20 | 0.15±0.05 | ≤1.60 | 30 | 2000 |
CM-HS-MS-PT-4.8/2.4 | ≥4.80 | 0.15±0.05 | ≤2.40 | 30 | 2000 |
CM-HS-MS-PT-6.4/3.2 | ≥6.40 | 0.15±0.05 | ≤3.20 | 30 | 1500 |
CM-HS-MS-PT-9.5/4.8 | ≥9.50 | 0.20±0.05 | ≤4.80 | 30 | 1500 |
CM-HS-MS-PT-12.7/6.4 | ≥12.7 | 0.20±0.05 | ≤6.40 | 30 | 500 |
CM-HS-MS-PT-19.1/9.5 | ≥19.1 | 0.20±0.05 | ≤9.50 | 30 | 500 |
CM-HS-MS-PT-25.4/12.7 | ≥25.4 | 0.20±0.05 | ≤12.7 | 30 | 500 |
CM-HS-MS-PT-38.1/19 | ≥38.1 | 0.20±0.05 | ≤19.0 | 30 | 500 |
CM-HS-MS-PT-50.8/25.4 | ≥50.8 | 0.20±0.05 | ≤25.4 | 30 | 250 |
EASE CODE . | |||||
AS SUPPLIED | AFTER RECOVERY | QUANTITY | |||
INSIDE DIA. | WALL THICKNESS | INSIDE DIA. | CONTINUOUS TYPE | LADDER TYPE | |
mm | mm | mm | m/roll | pcs/roll | |
CM-HS-MS-PT-2.4/0.8 | ≥2.40 | 0.20±0.05 | ≤ 0.80 | 30 | 2000 |
CM-HS-MS-PT-3.2/1.07 | ≥3.20 | 0.20±0.05 | ≤ 1.07 | 30 | 2000 |
CM-HS-MS-PT-4.8/1.6 | ≥4.80 | 0.20±0.05 | ≤ 1.6 | 30 | 2000 |
CM-HS-MS-PT-6.4/2.11 | ≥6.40 | 0.20±0.05 | ≤ 2.11 | 30 | 1500 |
CM-HS-MS-PT-9.5/3.17 | ≥9.50 | 0.20±0.05 | ≤ 3.17 | 30 | 1500 |
CM-HS-MS-PT-12.7/4.22 | ≥12.7 | 0.20±0.05 | ≤ 4.22 | 30 | 500 |
CM-HS-MS-PT-19.1/6.4 | ≥19.1 | 0.30±0.06 | ≤ 6.40 | 30 | 500 |
CM-HS-MS-PT-25.4/8.47 | ≥25.4 | 0.30±0.06 | ≤ 8.47 | 30 | 500 |
CM-HS-MS-PT-38.1/12.7 | ≥38.1 | 0.30±0.06 | ≤ 12.7 | 30 | 500 |
CM-HS-MS-PT-50.8/217 | ≥50.8 | 0.30±0.06 | ≤ 17.0 | 30 | 250 |
