CT-PA-MDT-
ES
| Quantity: | |
|---|---|
| SPECIFICATION | |
| MATERIAL | NYLON 6.6 WITH METAL MAGNETIC PARTICLES |
| WORKING TEMP. | -40℃~ +85℃ (SHORT TIME +110℃) |
| HUMIDITY ABSORPTION | 2.7% ~ 2.8% (23℃ -50% RH) |
| FLAMMABILITY | UL94V-2 |
| COLOR | BLUE |
| APPROVAL | REACH, RoHS |
| FEATURES | GOOD RESISTANCE TO OILS, GREASES, CHLORIDE SOLVENTS. |

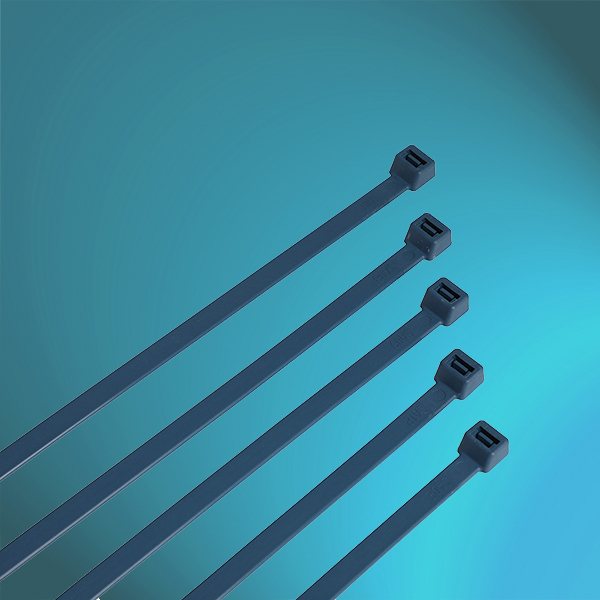

| DESCRIPTION | NYLON READABLE TIE INCLUDE METAL CONTENT SPREAD THROUGHOUT THE TIE ENABLING THEM TO BE LOCATED BY STANDARD METAL DETECTOR. THE BLUE COLOR ASSISTS IN VISUAL DETECTION AND REDUCES THE RISK OF CONTAMINATION. |
| APPLICATIONS: | RECOMMENDED FOR USE IN FOOD, PHARMACEUTICAL AND CHEMICAL INDUSTRIES. (THE REASON IS THAT NORMAL CABLE TIES ARE A POTENTIAL SOURCE OF PLASTIC CONTAMINATION IS THE FACT THAT THEY ARE CONSTANTLY BEING CUT-OFF AND REINSTALLED IN A PROCESSING PLANT. EVERY TIME THIS IS DONE, PIECES OF CABLE TIES THAT ARE CUT AWAY HAVE THE POTENTIAL TO GET INTO THE FOOD/PHARMA PROCESSING OR PACKAGING STREAM.) |
| EASE CODE | LENGTH | WIDTH | MAXIMUM BUNDLE DIAMETER | MINIMUM TENSILE STRENGTH |
| mm(inch) | mm(inch) | mm(inch) | N(lbs) | |
| CT-PA-MDT-100/2.5 | 100(3.94) | 2.5(0.098) | 20.5(0.81) | 80(18) |
| CT-PA-MDT-150/3.6 | 150(5.91) | 3.6(0.142) | 36(1.47) | 180(40) |
| CT-PA-MDT-200/3.6 | 200(7.87) | 52.5(2.07) | ||
| CT-PA-MDT-200/4.8 | 200(7.87) | 4.8(0.189) | 49.5(1.95) | 230(50) |
| CT-PA-MDT-300/4.8 | 300(11.81) | 81(3.19) | ||
| CT-PA-MDT-370/4.8 | 370(14.57) | 106.7(4.2) | ||
| CT-PA-MDT-370/7.6 | 370(14.57) | 7.6(0.299) | 108(4.25) | 540(120) |
| SPECIFICATION | |
| MATERIAL | NYLON 6.6 WITH METAL MAGNETIC PARTICLES |
| WORKING TEMP. | -40℃~ +85℃ (SHORT TIME +110℃) |
| HUMIDITY ABSORPTION | 2.7% ~ 2.8% (23℃ -50% RH) |
| FLAMMABILITY | UL94V-2 |
| COLOR | BLUE |
| APPROVAL | REACH, RoHS |
| FEATURES | GOOD RESISTANCE TO OILS, GREASES, CHLORIDE SOLVENTS. |
| DESCRIPTION | NYLON READABLE TIE INCLUDE METAL CONTENT SPREAD THROUGHOUT THE TIE ENABLING THEM TO BE LOCATED BY STANDARD METAL DETECTOR. THE BLUE COLOR ASSISTS IN VISUAL DETECTION AND REDUCES THE RISK OF CONTAMINATION. |
| APPLICATIONS: | RECOMMENDED FOR USE IN FOOD, PHARMACEUTICAL AND CHEMICAL INDUSTRIES. (THE REASON IS THAT NORMAL CABLE TIES ARE A POTENTIAL SOURCE OF PLASTIC CONTAMINATION IS THE FACT THAT THEY ARE CONSTANTLY BEING CUT-OFF AND REINSTALLED IN A PROCESSING PLANT. EVERY TIME THIS IS DONE, PIECES OF CABLE TIES THAT ARE CUT AWAY HAVE THE POTENTIAL TO GET INTO THE FOOD/PHARMA PROCESSING OR PACKAGING STREAM.) |
| EASE CODE | LENGTH | WIDTH | MAXIMUM BUNDLE DIAMETER | MINIMUM TENSILE STRENGTH |
| mm(inch) | mm(inch) | mm(inch) | N(lbs) | |
| CT-PA-MDT-100/2.5 | 100(3.94) | 2.5(0.098) | 20.5(0.81) | 80(18) |
| CT-PA-MDT-150/3.6 | 150(5.91) | 3.6(0.142) | 36(1.47) | 180(40) |
| CT-PA-MDT-200/3.6 | 200(7.87) | 52.5(2.07) | ||
| CT-PA-MDT-200/4.8 | 200(7.87) | 4.8(0.189) | 49.5(1.95) | 230(50) |
| CT-PA-MDT-300/4.8 | 300(11.81) | 81(3.19) | ||
| CT-PA-MDT-370/4.8 | 370(14.57) | 106.7(4.2) | ||
| CT-PA-MDT-370/7.6 | 370(14.57) | 7.6(0.299) | 108(4.25) | 540(120) |
