BS-CF-MU-SD
ES
460290000
| Quantity: | |
|---|---|

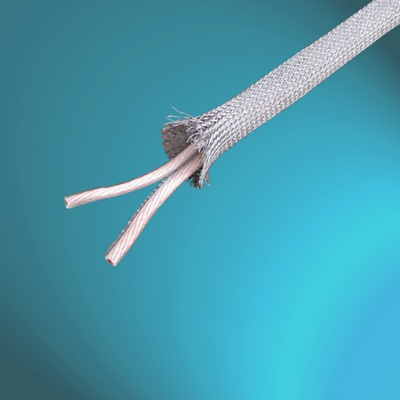

Multifilament & Shielding Copper Foil Braided Sleeving
SPECIFICATIONS | |||
MATERIAL: | COPPER FOIL MULTIFILAMENT | ||
COATING: | TIN | ||
FLAMMABILITY: | SELF-EXTINGUISHING TO UL94-V0 | ||
WORK TEMP: | -40℃-150℃ | ||
STANDARD: | UL (FILE NO. E317364) & RoHS & HALOGEN FREE | ||
FEATURE: | THE WOVEN COPPER FOIL FILAMENT PROVIDES MORE FLEXIBILITY AND MUCH LESS WEIGHT THAN TRADITIONAL TINNED-COPPER WIRE BRAIDED SLEEVING. | ||
APPLICATION: | IDEAL FOR EMI SHIELDING IN TELECOM SYSTEM, ELECTRONIC MEDICAL INSTRUMENTS AND MILITARY EQUIPMENTS. | ||
EASE CODE | FLAT WIDTH | EXPANDED RANGE | PACKING |
MM | MIN. (I) TO MAX. (O) | M/ROLL | |
BS-CF-MU-03SD | 3 | 1.0~5.0 | 200 |
BS-CF-MU-06SD | 6 | 4.0~8.0 | 150 |
BS-CF-MU-08SD | 8 | 5.0~10.0 | 150 |
BS-CF-MU-10SD | 10 | 7.0~16.0 | 150 |
BS-CF-MU-12SD | 12 | 8.0~20.0 | 100 |
BS-CF-MU-15SD | 15 | 10.0~23.0 | 100 |
NOTE: BIG SIZES ARE AVAILABLE UPON REQUEST. | |||
