BS-CF-MO-SD
ES
460290000
| Quantity: | |
|---|---|

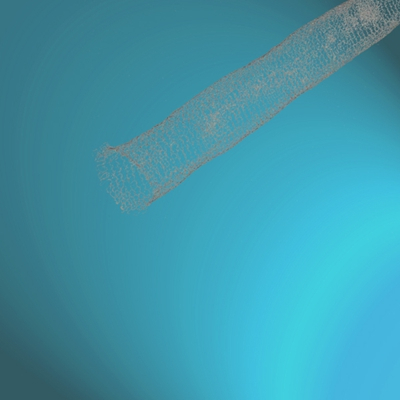

Tinned Copper Monofilament Sleeving
SPECIFICATIONS | |||
MATERIAL: | COPPER MONOFILAMENT | ||
COATING: | TIN | ||
FLAMMABILITY: | SELF-EXTINGUISHING TO UL94-V0 | ||
WORK TEMP: | -60℃-200℃ | ||
MELTING POINT: | 1084℃ | ||
STANDARD: | UL (FILE NO. E317364) & RoHS & HALOGEN FREE | ||
FEATURE: | THE MONOFILAMENT COPPER OFFERS EXTREMELY LIGHT WEIGHT AND FLEXIBILITY. | ||
APPLICATION: | IDEAL FOR EMI SHIELDING IN AEROSPACE TELECOM, AIRCRAFT NAVIGATION AND HIGH SPEED TRAIN APPLICATION. | ||
EASE CODE | SIZE | WIDTH | PACKING |
MM | MM | M/ROLL | |
BS-CF-MO-30SD | 30 | 47 | 300-500 |
BS-CF-MO-35SD | 35 | 55 | 300-500 |
BS-CF-MO-40SD | 40 | 62 | 300-500 |
BS-CF-MO-45SD | 45 | 70 | 300-500 |
BS-CF-MO-50SD | 50 | 78 | 300-500 |
Tinned Copper Monofilament Sleeving
SPECIFICATIONS | |||
MATERIAL: | COPPER MONOFILAMENT | ||
COATING: | TIN | ||
FLAMMABILITY: | SELF-EXTINGUISHING TO UL94-V0 | ||
WORK TEMP: | -60℃-200℃ | ||
MELTING POINT: | 1084℃ | ||
STANDARD: | UL (FILE NO. E317364) & RoHS & HALOGEN FREE | ||
FEATURE: | THE MONOFILAMENT COPPER OFFERS EXTREMELY LIGHT WEIGHT AND FLEXIBILITY. | ||
APPLICATION: | IDEAL FOR EMI SHIELDING IN AEROSPACE TELECOM, AIRCRAFT NAVIGATION AND HIGH SPEED TRAIN APPLICATION. | ||
EASE CODE | SIZE | WIDTH | PACKING |
MM | MM | M/ROLL | |
BS-CF-MO-30SD | 30 | 47 | 300-500 |
BS-CF-MO-35SD | 35 | 55 | 300-500 |
BS-CF-MO-40SD | 40 | 62 | 300-500 |
BS-CF-MO-45SD | 45 | 70 | 300-500 |
BS-CF-MO-50SD | 50 | 78 | 300-500 |
