NON-INSULATED FORK TERMINALS - UL APPROVED
SPECIFICATIONS | |||||||||
MATERIAL: | HIGH CONDUCTIVITY COPPER TO BS2871 | ||||||||
PURITY: | >99.9% | ||||||||
PLATING: | ELECTRO-TINNED | ||||||||
STANDARD: | UL APPROVAL | ||||||||

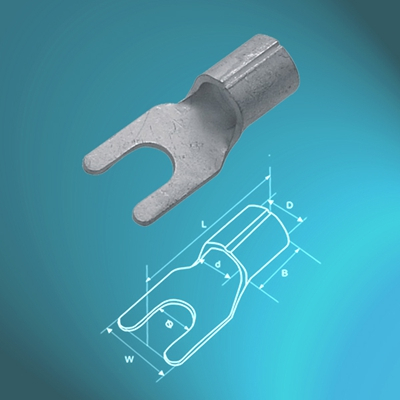

EASE CODE | SIZE | Φ | D | d | W | L | B | T | WIRE RANGE |
(mm)2 | |||||||||
TM-FK-1.5/3YS | 1.5 | 3.7 | 3.4 | 1.7 | 5.7 | 16 | 4.5 | 0.8 | 22~16AWG 0.25-1.5mm2 |
TM-FK-1.5/3YSA | 3.2 | 5.7 | 16 | 4.5 | |||||
TM-FK-1.5/3YM | 3.7 | 6.2 | 16 | 4.5 | |||||
TM-FK-1.5/4YS | 4.3 | 6.4 | 16 | 4.5 | |||||
TM-FK-1.5/4YM | 4.3 | 7.2 | 16 | 4.5 | |||||
TM-FK-1.5/5Y | 5.3 | 8 | 16 | 4.5 | |||||
TM-FK-1.5/6Y | 6.7 | 10.7 | 17 | 4.5 | |||||
TM-FK-2.5/3YSA | 2.5 | 3.2 | 4 | 2.3 | 5.7 | 16 | 4.5 | 0.8 | 16~14AWG 1.5~2.5mm2 |
TM-FK-2.5/3YS | 3.7 | 5.7 | 16 | 4.5 | |||||
TM-FK-2.5/3YW | 3.7 | 6.2 | 16 | 4.5 | |||||
TM-FK-2.5/4YS | 4.3 | 6.4 | 16 | 4.5 | |||||
TM-FK-2.5/4YW | 4.3 | 7.2 | 16 | 4.5 | |||||
TM-FK-2.5/5Y | 5.3 | 8 | 16 | 4.5 | |||||
TM-FK-2.5/6Y | 6.7 | 10.7 | 19 | 4.5 | |||||
TM-FK-4/4Y | 4 | 4.3 | 5 | 3 | 8 | 18 | 6.3 | 0.8 | 14~12AWG 2.5~4mm2 |
TM-FK-4/5Y | 5.3 | 8 | 18 | 6.3 | |||||
TM-FK-6/3Y | 6 | 3.7 | 5.6 | 3.5 | 8.2 | 19.5 | 6.5 | 1 | 12~10AWG 4~6mm2 |
TM-FK-6/4Y | 4.3 | 8.2 | 19.5 | 6.5 | |||||
TM-FK-6/5Y | 5.3 | 9 | 19.5 | 6.5 | |||||
TM-FK-6/6Y | 6.4 | 12 | 24 | 6.5 | |||||
TM-FK-10/5Y | 10 | 5.3 | 7 | 4.5 | 9 | 23.5 | 8.6 | 1.15 | 10~8AWG 6~10mm2 |
TM-FK-10/6Y | 6.7 | 12 | 24 | 8.6 | |||||
TM-FK-16/5Y | 16 | 5.3 | 8.5 | 5.9 | 12 | 27.5 | 10 | 1.2 | 8~6AWG 10~16mm2 |
TM-FK-16/6Y | 6.7 | 12 | 27.5 | 10 | |||||
TM-FK-16/5I | 5.3 | 9.1 | 6 | 12 | 27.5 | 10 | 1.5 |
