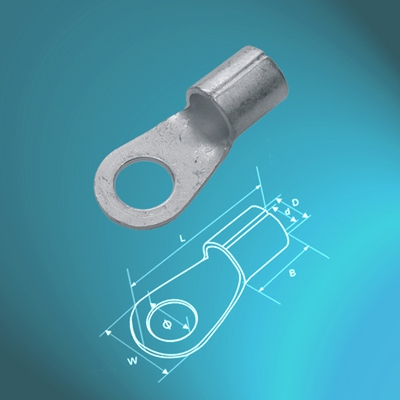

NON-INSULATED RING TERMINALS - UL APPROVED
SPECIFICATIONS | |||||||||
MATERIAL: | HIGH CONDUCTIVITY COPPER TO BS2871 | ||||||||
PURITY: | >99.9% | ||||||||
PLATING: | ELECTRO-TINNED | ||||||||
STANDARD: | UL APPROVAL | ||||||||
EASE CODE | SIZE | Φ | D | d | W | L | B | T | WIRE RANGE |
(mm)2 | |||||||||
TM-RN-1.5/3 | 1.5 | 3.7 | 3.4 | 1.7 | 5.5 | 11.5 | 4.5 | 0.8 | 22~16AWG 0.5~1.5mm2 |
TM-RN-1.5/3A | 3.2 | 5.5 | 11.5 | 4.5 | |||||
TM-RN-1.5/3M | 3.7 | 6.6 | 14.4 | 4.5 | |||||
TM-RN-1.5/4 | 4.3 | 8 | 15.8 | 4.5 | |||||
TM-RN-1.5/4M | 4.3 | 6.6 | 14.4 | 4.5 | |||||
TM-RN-1.5/5 | 5.3 | 8 | 15.8 | 4.5 | |||||
TM-RN-1.5/6 | 6.4 | 11.6 | 21.7 | 4.5 | |||||
TM-RN-1.5/8 | 8.4 | 11.6 | 21.7 | 4.5 | |||||
TM-RN-1.5/10 | 10.5 | 13.6 | 26 | 4.5 | |||||
TM-RN-2.5/3 | 2.5 | 3.7 | 4 | 2.3 | 8.5 | 16.8 | 4.8 | 0.8 | 16~14AWG 1.5~2.5mm2 |
TM-RN-2.5/3A | 3.2 | 8.5 | 16.8 | 4.8 | |||||
TM-RN-2.5/3M | 3.7 | 6.6 | 14.4 | 4.8 | |||||
TM-RN-2.5/4 | 4.3 | 8.5 | 16.8 | 4.8 | |||||
TM-RN-2.5/4M | 4.3 | 6.6 | 14.4 | 4.8 | |||||
TM-RN-2.5/5 | 5.3 | 9.5 | 16.8 | 4.8 | |||||
TM-RN-2.5/6 | 6.4 | 12 | 21.8 | 4.8 | |||||
TM-RN-2.5/7 | 7.1 | 12 | 21.8 | 4.8 | |||||
TM-RN-2.5/8 | 8.4 | 12 | 21.8 | 4.8 | |||||
TM-RN-2.5/10 | 10.5 | 13.6 | 25.5 | 4.8 | |||||
TM-RN-4/4 | 4 | 4.3 | 5 | 3.2 | 9.5 | 20 | 6.8 | 0.8 | 14~12AWG 2.5~4mm2 |
TM-RN-4/5 | 5.3 | 9.5 | 20 | 6.8 | |||||
TM-RN-4/6 | 6.4 | 12 | 21.4 | 6.8 | |||||
TM-RN-4/8 | 8.4 | 12 | 21.4 | 6.8 | |||||
TM-RN-6/3 | 6 | 3.7 | 5.6 | 3.5 | 9.5 | 19.8 | 6.8 | 1 | 12~10AWG 4~6mm2 |
TM-RN-6/4 | 4.3 | 9.5 | 19.8 | 6.8 | |||||
TM-RN-6/5 | 5.3 | 9.5 | 19.8 | 6.8 | |||||
TM-RN-6/6 | 6.4 | 12 | 25.8 | 6.8 | |||||
TM-RN-6/6S | 6.4 | 12 | 22.5 | 6.8 | |||||
TM-RN-6/8 | 8.4 | 15 | 28 | 6.8 | |||||
TM-RN-6/10 | 10.5 | 15 | 28 | 6.8 | |||||
TM-RN-10/3 | 10 | 3.7 | 7 | 4.5 | 10 | 21 | 8 | 1.15 | 10~8AWG 6~10mm2 |
TM-RN-10/4 | 4.3 | 10 | 21 | 8 | |||||
TM-RN-10/5 | 5.3 | 10 | 21 | 8 | |||||
TM-RN-10/6 | 6.4 | 11 | 22.5 | 8 | |||||
TM-RN-10/8 | 8.4 | 14 | 27 | 8 | |||||
TM-RN-10/10 | 10.5 | 18 | 30 | 8 | |||||
TM-RN-10/13 | 13 | 18 | 30 | 8 | |||||
TM-RN-16/5 | 16 | 5.3 | 8.5 | 5.9 | 11 | 25.5 | 11 | 1.2 | 8~6AWG 10~16mm2 |
TM-RN-16/6 | 6.4 | 11 | 25.5 | 11 | |||||
TM-RN-16/8 | 8.4 | 14 | 31 | 11 | |||||
TM-RN-16/ | 10.5 | 18 | 33 | 11 | |||||
TM-RN-16/13 | 13 | 18 | 33 | 11 | |||||
TM-RN-25/6 | 25 | 6.4 | 11 | 7.8 | 12 | 31 | 11 | 1.5 | 6~4AWG 16~25mm2 |
TM-RN-25/8 | 8.4 | 16 | 34 | 11 | |||||
TM-RN-25/10 | 10.5 | 18 | 35 | 11 | |||||
TM-RN-25/13 | 13 | 18 | 35 | 11 | |||||
TM-RN-40/6 | 40 | 6.4 | 13 | 9.6 | 15.3 | 37.7 | 14 | 1.6 | 4~2AWG 25~40mm2 |
TM-RN-40/8 | 8.4 | 15.3 | 37.7 | 14 | |||||
TM-RN-40/10 | 10.5 | 15.3 | 37.7 | 14 | |||||
TM-RN-40/13 | 13 | 22 | 43 | 14 | |||||
TM-RN-60/8 | 60 | 8.4 | 15.3 | 11.9 | 22 | 44 | 17 | 1.7 | 2~0AWG 40~60mm2 |
TM-RN-60/10 | 10.5 | 22 | 44 | 17 | |||||
TM-RN-60/12 | 13 | 22 | 44 | 17 | |||||
TM-RN-1.5/3US | 1.5 | 3.7 | 3.2 | 1.6 | 6.6 | 17.9 | 6.5 | 0.76 | 22~16AWG 0.5~1.5mm2 |
TM-RN-1.5/4US | 4.4 | 8 | 18.7 | 6.5 | |||||
TM-RN-1.5/5US | 5 | 8 | 19 | 6.5 | |||||
TM-RN-1.5/6US | 6.8 | 11.8 | 23.6 | 6.5 | |||||
TM-RN-2.5/3US | 2.5 | 3.7 | 4 | 2.3 | 8 | 20.2 | 6.5 | 0.8 | 16~14AWG 1.5~2.5mm2 |
TM-RN-2.5/4US | 4.4 | 8 | 20.2 | 6.5 | |||||
TM-RN-2.5/5US | 5 | 8 | 20.2 | 6.5 | |||||
TM-RN-2.5/6US | 6.4 | 11.8 | 23.5 | 6.5 | |||||
TM-RN-2.5/8US | 8.4 | 11.8 | 23.5 | 6.5 | |||||
TM-RN-2.5/10US | 10 | 13.5 | 24.3 | 6.5 | |||||
TM-RN-6/4US | 6 | 4.4 | 5.6 | 3.5 | 9.4 | 22.85 | 6.75 | 1 | 12~10AWG 4~6mm2 |
TM-RN-6/5US | 5 | 9.4 | 22.85 | 6.75 | |||||
TM-RN-6/6US | 6.8 | 13.3 | 25.3 | 6.75 | |||||
TM-RN-6/8US | 8.4 | 13.3 | 25.7 | 6.75 | |||||
TM-RN-6/10US | 10 | 15 | 26.8 | 6.75 | |||||
TM-RN-6/12US | 13.2 | 18.2 | 28.5 | 6.75 |
