Vinyl Insulated Quick Splice Connectors
You are here: Home » Product Category » Pre-Insulated Terminals » Splice Connectors » Vinyl Insulated Quick Splice Connectors

Product Categories

Share to:

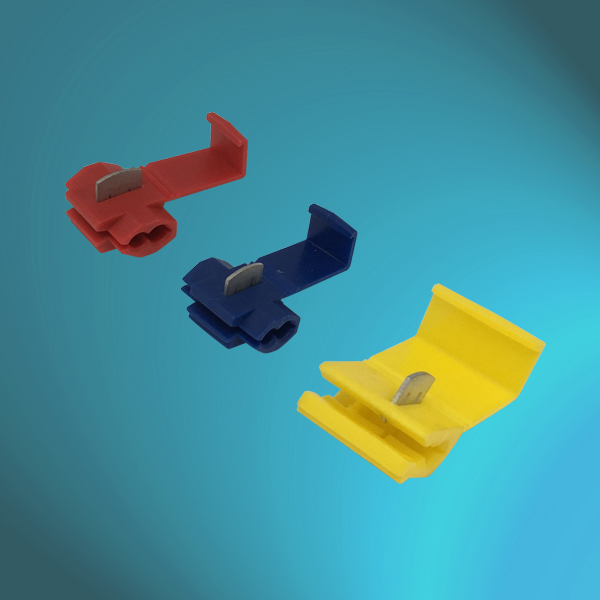

Vinyl Insulated Quick Splice Connectors

SPECIFICATIONS
BASE MATERIAL: BRASS
PLATING: ELECTRO-TINNED
INSULATION MATERIAL: VINYL
MAX. WORKING TEMP.: 75ºC
MAX. WORKING VOLTAGE: 300V

  • TM-3M
  • ES
Quantity:

VINYL INSULATED QUICK SPLICE CONNECTORS


SPECIFICATION

MATERIAL

PVC / BRASS

COATING

ELECTRO-TINED

WORKING TEMP.

75

VOLTAGE

300V

DESCRIPTION

RED INSULATION: CONDUCTOR SIZE 0.5-1.5mm² / 22-16AWG.


BULE INSULATION: CONDUCTOR SIZE 1.5-2.5mm² / 16-14AWG.


YELLOW INSULATION: CONDUCTOR SIZE 4.0-6.0mm² / 12-10AWG.


HIGH GRADE PVC INSULATION MAKES CRIMPING EASY WHILST ENSURING COMPLETE INTEGRITY OF TERMINATION.


A COMPLETE RANGE OF PRE-INSULATED TERMINALS THAT COMBINE HIGH QUALITY WITH COMPETITIVE PRICING.


EASE CODE

DIMENSION mm(inch)

WIRE RANGE

L (mm)

L (inch)

W (mm)

W (inch)

mm²
(A.W.G)

TM-3MR

32.0

1.254

20.0

0.784

0.5-1.5
(22-16)

TM-3MB

32.0

1.254

20.0

0.784

1.5-2.5
(16-14)

TM-3MY

32.0

1.254

21.0

0.823

4.0-6.0
(12-10)
