TM-BD-V
ES
| Quantity: | |
|---|---|

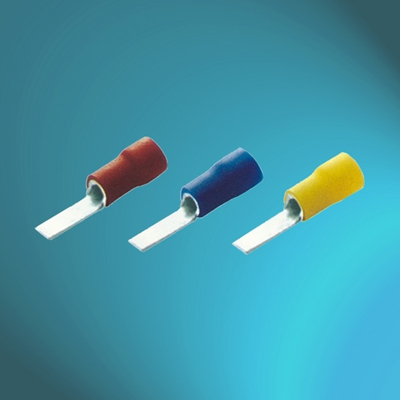

VINLY-INSULATED BLADE - SINGLE-CRIMP TYPE
SPECIFICATION | |
MATERIAL | PVC INSULATION / COPPER TERMINAL |
COATING | ELECTRO-TINED |
WORKING TEMP. | 75℃ |
VOLTAGE | 600V |
DESCRIPTION | RED INSULATION: CONDUCTOR SIZE 0.5-1.5mm² / 22-16AWG. |
BULE INSULATION: CONDUCTOR SIZE 1.5-2.5mm² / 16-14AWG. | |
YELLOW INSULATION: CONDUCTOR SIZE 4.0-6.0mm² / 12-10AWG. | |
HIGH GRADE PVC INSULATION MAKES CRIMPING EASY WHILST ENSURING COMPLETE INTEGRITY OF TERMINATION. | |
A COMPLETE RANGE OF PRE-INSULATED TERMINALS THAT COMBINE HIGH QUALITY WITH COMPETITIVE PRICING. | |
STANDARD | UL LISTED FILE NO. E366008 |
EASE CODE | DIMENSION mm(inch) | WIRE RANGE | ||||||
W | F | E | L | D | d1 | T | mm² | |
TM-BD-1-10V | 3.0 (.118) | 10.0 (.392) | 10.4 (.408) | 20.4 (.800) | 4.0 (.157) | 1.7 (.067) | 0.75 (.029) | 0.5-1.5 |
TM-BD-1-13V | 3.0 (.118) | 13.0 (.510) | 23.4 (.917) | |||||
TM-BD-1-14V | 3.0 (.118) | 14.5 (.568) | 24.9 (.976) | |||||
TM-BD-1-18(2.3)V | 2.3 (.090) | 18.0 (.706) | 28.4 (1.113) | |||||
TM-BD-1-18(3.0)V | 3.0 (.118) | 18.0 (.706) | 28.4 (1.113) | |||||
TM-BD-2-8V | 3.0 (.118) | 8.0 (.314) | 10.4 (.408) | 18.4 (.721) | 4.6 (.180) | 2.3 (.090) | 0.75 (.029) | 1.5-2.5 |
TM-BD-2-13V | 3.0 (.118) | 13.0 (.510) | 23.4 (.917) | |||||
TM-BD-2-14V | 3.0 (.118) | 14.0 (.549) | 24.4 (.956) | |||||
TM-BD-2-18(2.3)V | 2.3 (.090) | 18.0 (.706) | 28.4 (1.113) | |||||
TM-BD-2-18(3.0)V | 3.0 (.118) | 18.0 (.706) | 28.4 (1.113) | |||||
TM-BD-5-14V | 3.0 (.118) | 14.0 (.549) | 13.5 (.529) | 27.5 (1.078) | 6.9 (.270) | 3.5 (.137) | 1.0 (.0392) | 4.0-6.0 |
TM-BD-5-18(2.3)V | 2.3 (.090) | 18.0 (.706) | 31.5 (1.235) | |||||
TM-BD-5-18(3.0)V | 3.0 (.118) | 18.0 (.706) | 31.5 (1.235) | |||||
