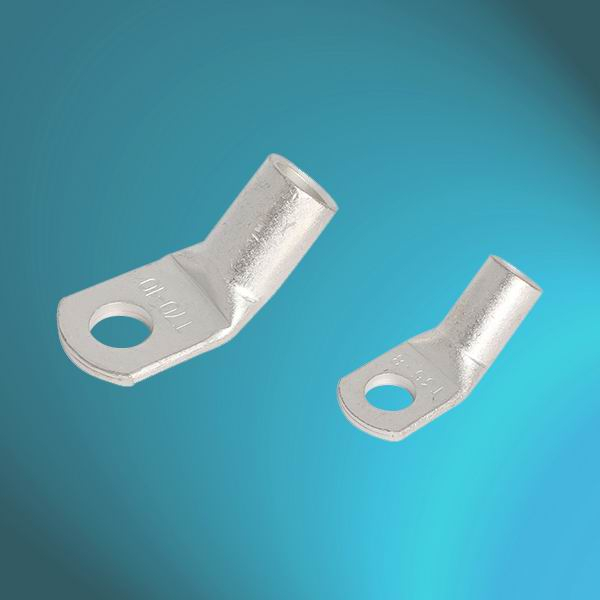

45 DEGREE COPPER TUBE TERMINALS
SPECIFICATIONS
MATERIAL: HIGH CONDUCTIVITY COPPER TO BS2871
PURITY: >99.9%
COATING: TIN
EASE CODE | SIZE (mm)2 | STUD | Φ | D | d | W | L1 | L2 |
TU-45D-10/6 | 10 | 6 | 6.4 | 6.9 | 4.7 | 11.9 | 12.5 | 10 |
TU-45D-10/8 | 10 | 8 | 8.3 | 6.9 | 4.7 | 13.5 | 15.5 | 10 |
TU-45D-16/6 | 16 | 6 | 6.4 | 7.8 | 5.6 | 11.9 | 12.0 | 11 |
TU-45D-16/8 | 16 | 8 | 8.3 | 7.8 | 5.6 | 13.5 | 15.5 | 11 |
TU-45D-25/8 | 25 | 8 | 8.3 | 9.5 | 7.1 | 13.5 | 16.0 | 13 |
TU-45D-25/10 | 25 | 10 | 10.5 | 9.5 | 7.1 | 16.0 | 19.0 | 13 |
TU-45D-35/8 | 35 | 8 | 8.3 | 11.0 | 8.2 | 15.7 | 18.0 | 16 |
TU-45D-35/10 | 35 | 10 | 10.5 | 11.0 | 8.2 | 15.7 | 22.0 | 16 |
TU-45D-50/10 | 50 | 10 | 10.5 | 12.5 | 9.5 | 17.9 | 22.0 | 19 |
TU-45D-50/12 | 50 | 12 | 13.0 | 12.5 | 9.5 | 17.9 | 22.0 | 19 |
TU-45D-70/10 | 70 | 10 | 10.5 | 15.0 | 11.5 | 21.5 | 22.0 | 21 |
TU-45D-70/12 | 70 | 12 | 13.0 | 15.0 | 11.5 | 21.5 | 22.0 | 21 |
TU-45D-95/14 | 95 | 14 | 14.5 | 17.0 | 13.5 | 24.7 | 33.0 | 24 |
TU-45D-95/16 | 95 | 16 | 16.5 | 17.0 | 13.5 | 24.7 | 33.0 | 24 |
TU-45D-120/14 | 120 | 14 | 14.5 | 20.0 | 15.6 | 28.9 | 33.0 | 27 |
TU-45D-120/16 | 120 | 16 | 16.5 | 20.0 | 15.6 | 28.9 | 33.0 | 27 |
45 DEGREE COPPER TUBE TERMINALS
SPECIFICATIONS
MATERIAL: HIGH CONDUCTIVITY COPPER TO BS2871
PURITY: >99.9%
COATING: TIN
EASE CODE | SIZE (mm)2 | STUD | Φ | D | d | W | L1 | L2 |
TU-45D-10/6 | 10 | 6 | 6.4 | 6.9 | 4.7 | 11.9 | 12.5 | 10 |
TU-45D-10/8 | 10 | 8 | 8.3 | 6.9 | 4.7 | 13.5 | 15.5 | 10 |
TU-45D-16/6 | 16 | 6 | 6.4 | 7.8 | 5.6 | 11.9 | 12.0 | 11 |
TU-45D-16/8 | 16 | 8 | 8.3 | 7.8 | 5.6 | 13.5 | 15.5 | 11 |
TU-45D-25/8 | 25 | 8 | 8.3 | 9.5 | 7.1 | 13.5 | 16.0 | 13 |
TU-45D-25/10 | 25 | 10 | 10.5 | 9.5 | 7.1 | 16.0 | 19.0 | 13 |
TU-45D-35/8 | 35 | 8 | 8.3 | 11.0 | 8.2 | 15.7 | 18.0 | 16 |
TU-45D-35/10 | 35 | 10 | 10.5 | 11.0 | 8.2 | 15.7 | 22.0 | 16 |
TU-45D-50/10 | 50 | 10 | 10.5 | 12.5 | 9.5 | 17.9 | 22.0 | 19 |
TU-45D-50/12 | 50 | 12 | 13.0 | 12.5 | 9.5 | 17.9 | 22.0 | 19 |
TU-45D-70/10 | 70 | 10 | 10.5 | 15.0 | 11.5 | 21.5 | 22.0 | 21 |
TU-45D-70/12 | 70 | 12 | 13.0 | 15.0 | 11.5 | 21.5 | 22.0 | 21 |
TU-45D-95/14 | 95 | 14 | 14.5 | 17.0 | 13.5 | 24.7 | 33.0 | 24 |
TU-45D-95/16 | 95 | 16 | 16.5 | 17.0 | 13.5 | 24.7 | 33.0 | 24 |
TU-45D-120/14 | 120 | 14 | 14.5 | 20.0 | 15.6 | 28.9 | 33.0 | 27 |
TU-45D-120/16 | 120 | 16 | 16.5 | 20.0 | 15.6 | 28.9 | 33.0 | 27 |
