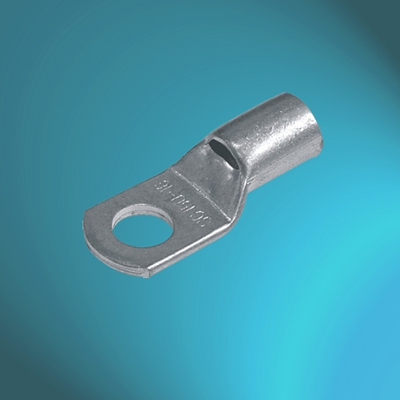

Professional SC Specification Copper Tube Terminals

SPECIFICATIONS MATERIAL: HIGH CONDUCTIVITY COPPER TO BS2871 PURITY: >99.9% COATING: TIN
  • TU-SC

  • ES

  • 85369090

Availability:
Quantity:

ES SPECIFICATION COPPER TUBE TERMINALS


SPECIFICATIONS

MATERIAL: HIGH CONDUCTIVITY COPPER TO BS2871

PURITY: >99.9%

COATING: TIN


EASE CODE

SIZE(mm)2

STUD

Φ

D

d

W

B

L

TU-SC-1.5/4

1.5

4

4.2

3.7

1.8

8.0

5.0

16

TU-SC-1.5/5

1.5

5

5.2

3.7

1.8

10.0

5.0

17

TU-SC-1.5/6

1.5

6

 6.5

3.7

1.8

10.0

5.0

18

TU-SC-2.5/4

2.5

4

4.2

4.0

2.4

8.0

7.0

18

TU-SC-2.5/5

2.5

5

 5.2

4.0

2.4

10.0

7.0

20

TU-SC-2.5/6

2.5

6

6.5

4.0

2.4

10.0

7.0

20

TU-SC-2.5/8

2.5

8

8.4

4.0

2.4

12.5

7.0

23

TU-SC-4/4

4

4

 4.2

4.8

3.1

10.0

7.0

20

TU-SC-4/5

4

5

 5.2

4.8

3.1

10.0

7.0

20

TU-SC-4/6

4

6

 6.5

4.8

3.1

10.0

7.0

20

TU-SC-4/8

4

8

 8.4

4.8

3.1

12.5

7.0

23

TU-SC-6/4

6

4

 4.2

5.5

3.8

10.0

9.0

24

TU-SC-6/5

6

5

 5.2

5.5

3.8

10.0

9.0

24

TU-SC-6/6

6

6

 6.5

5.5

3.8

12.0

9.0

24

TU-SC-6/8

6

8

8.4

5.5

3.8

12.5

9.0

26

TU-SC-6/10

6

10

10.5

5.5

3.8

15.0

9.0

28

TU-SC-10/5

10

5

 5.2

6.2

4.5

12.0

9.0

25

TU-SC-10/6

10

6

 6.5

6.2

4.5

12.0

9.0

25

TU-SC-10/8

10

8

 8.4

6.2

4.5

12.5

9.0

27

TU-SC-10/10

10

10

10.5

6.2

4.5

15.0

9.0

29

TU-SC-10/12

10

12

13.0

6.2

4.5

17.0

9.0

31

TU-SC-16/5

16

5

5.2

7.1

5.4

12.0

12.0

30

TU-SC-16/6

16

6

 6.5

7.1

5.4

12.0

12.0

30

TU-SC-16/8

16

8

 8.4

7.1

5.4

12.5

12.0

30

TU-SC-16/10

16

10

10.5

7.1

5.4

16.0

12.0

33

TU-SC-16/12

16

12

13.0

7.1

5.4

17.0

12.0

35

TU-SC-25/5

25

5

 5.2

8.8

6.8

13.0

12.0

33

TU-SC-25/6

25

6

 6.5

8.8

6.8

13.0

12.0

33

TU-SC-25/8

25

8

 8.4

8.8

6.8

15.0

12.0

33

TU-SC-25/10

25

10

10.5

8.8

6.8

18.0

12.0

34

TU-SC-25/12

25

12

13.0

8.8

6.8

18.0

12.0

35

TU-SC-25/14

25

14

15.0

8.8

6.8

20.0

12.0

38

TU-SC-35/5

35

5

5.2

10.6

8.2

16.0

14.0

38

TU-SC-35/6

35

6

 6.5

10.6

8.2

16.0

14.0

38

TU-SC-35/8

35

8

 8.4

10.6

8.2

16.0

14.0

38

TU-SC-35/10

35

10

10.5

10.6

8.2

18.0

14.0

39

TU-SC-35/12

35

12

13.0

10.6

8.2

19.0

14.0

40.5

TU-SC-35/14

35

14

15.0

10.6

8.2

20.0

14.0

42

TU-SC-50/6

50

6

 6.5

12.4

9.5

17.8

16.0

45

TU-SC-50/8

50

8

8.4

12.4

9.5

17.8

16.0

45

TU-SC-50/10

50

10

10.5

12.4

9.5

17.8

16.0

45

TU-SC-50/12

50

12

13.0

12.4

9.5

20.0

16.0

45

TU-SC-50/14

50

14

15.0

12.4

9.5

22.0

16.0

46

TU-SC-50/16

50

16

17.0

12.4

9.5

24.0

16.0

47

TU-SC-70/8

70

8

 8.4

14.7

11.2

21.0

20.0

52

TU-SC-70/10

70

10

10.5

14.7

11.2

21.0

20.0

52

TU-SC-70/12

70

12

13.0

14.7

11.2

21.0

20.0

52

TU-SC-70/14

70

14

15.0

14.7

11.2

21.0

20.0

52

TU-SC-70/16

70

16

17.0

14.7

11.2

25.0

20.0

53

TU-SC-95/8

95

8

 8.4

17.4

13.5

25.0

23.0

58

TU-SC-95/10

95

10

10.5

17.4

13.5

25.0

23.0

58

TU-SC-95/12

95

12

13.0

17.4

13.5

25.0

23.0

58

TU-SC-95/14

95

14

15.0

17.4

13.5

25.0

23.0

58

TU-SC-95/16

95

16

17.0

17.4

13.5

25.0

23.0

58

TU-SC-120/8

120

8

8.4

19.4

15.0

28.0

22.0

63

TU-SC-120/10

120

10

10.5

19.4

15.0

28.0

22.0

63

TU-SC-120/12

120

12

13.0

19.4

15.0

28.0

22.0

63

TU-SC-120/14

120

14

15.0

19.4

15.0

28.0

22.0

63

TU-SC-120/16

120

16

17.0

19.4

15.0

28.0

22.0

63

TU-SC-120/20

120

20

21.0

19.4

15.0

28.0

22.0

63

TU-SC-150/8

150

8

 8.4

21.2

16.5

30.5

26.0

70

TU-SC-150/10

150

10

10.5

21.2

16.5

30.5

26.0

70

TU-SC-150/12

150

12

 13.0

21.2

16.5

30.5

26.0

70

TU-SC-150/14

150

14

15.0

21.2

16.5

30.5

26.0

70

TU-SC-150/16

150

16

17.0

21.2

16.5

30.5

26.0

70

TU-SC-150/20

150

20

21.0

21.2

16.5

30.5

26.0

70

TU-SC-185/10

185

10

 10.5

23.5

18.5

34.0

32.0

75

TU-SC-185/12

185

12

 13.0

23.5

18.5

34.0

32.0

75

TU-SC-185/14

185

14

 15.0

23.5

18.5

34.0

32.0

75

TU-SC-185/16

185

16

17.0

23.5

18.5

34.0

32.0

75

TU-SC-185/20

185

20

21.0

23.5

18.5

34.0

32.0

75

TU-SC-240/10

240

10

10.5

21.0

21.0

38.5

32.0

90

TU-SC-240/12

240

12

13.0

21.0

21.0

38.5

38.0

90

TU-SC-240/14

240

14

 15.0

21.0

21.0

38.5

38.0

90

TU-SC-240/16

240

16

17.0

21.0

21.0

38.5

38.0

90

TU-SC-240/18

240

18

19.0

21.0

21.0

38.5

38.0

90

TU-SC-240/20

240

20

21.0

21.0

21.0

38.5

38.0

90

TU-SC-300/10

300

10

10.5

23.5

23.5

43.0

42.0

98

TU-SC-300/12

300

12

 13.0

23.5

23.5

43.0

42.0

98

TU-SC-300/14

300

14

15.0

23.5

23.5

43.0

42.0

98

TU-SC-300/16

300

16

17.0

23.5

23.5

43.0

42.0

98

TU-SC-300/20

300

20

21.0

23.5

23.5

43.0

42.0

98

TU-SC-400/10

400

10

10.5

36.5

28.5

52.0

44.0

110

TU-SC-400/12

400

12

13.0

36.5

28.5

52.0

44.0

110

TU-SC-400/14

400

14

15.0

36.5

28.5

52.0

44.0

110

TU-SC-400/16

400

16

17.0

36.5

28.5

52.0

44.0

110

TU-SC-400/20

400

20

21.0

36.5

28.5

52.0

44.0

110

TU-SC-500/10

500

10

10.5

39.0

30.0

56.0

48.0

120

TU-SC-500/12

500

12

13.0

39.0

30.0

56.0

48.0

120

TU-SC-500/14

500

14

15.0

39.0

30.0

56.0

48.0

120

TU-SC-500/16

500

16

 17.0

39.0

30.0

56.0

48.0

120

TU-SC-500/20

500

20

21.0

39.0

30.0

56.0

48.0

120

TU-SC-630/10

630

10

10.5

45.0

35.0

65.0

56.0

140

TU-SC-630/12

630

12

13.0

45.0

35.0

65.0

56.0

140

TU-SC-630/14

630

14

15.0

45.0

35.0

65.0

56.0

140

TU-SC-630/16

630

16

17.0

45.0

35.0

65.0

56.0

140

TU-SC-630/20

630

20

 21.0

45.0

35.0

65.0

56.0

140
