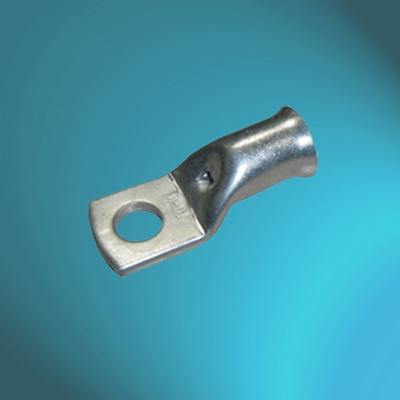

UK STANDARD COPPER TUBE TERMINALS-HEAVY DUTY
SPECIFICATIONS
MATERIAL: HIGH CONDUCTIVITY COPPER TO BS2871
PURITY: >99.9%
COATING: TIN
EASE CODE | SIZE | STUD | Φ | D | d | W | L |
(mm)2 | |||||||
TU-BS-1.5/3HD | 1.5 | 3 | 3.2 | 3.6 | 1.9 | 5.5 | 17 |
TU-BS-1.5/4HD | 4 | 4.3 | 3.6 | 1.9 | 6.7 | 19.5 | |
TU-BS-1.5/5HD | 5 | 5.4 | 3.6 | 1.9 | 7.7 | 20.4 | |
TU-BS-2.5/3HD | 2.5 | 3 | 3.2 | 3.9 | 2.4 | 5.5 | 18 |
TU-BS-2.5/6HD | 6 | 6.4 | 3.9 | 2.4 | 10 | 21 | |
TU-BS-4/4HD | 4 | 4 | 4.3 | 4.7 | 3 | 10 | 21 |
TU-BS-4/5HD | 5 | 5.4 | 4.7 | 3 | 10 | 22 | |
TU-BS-4/6HD | 6 | 6.4 | 4.7 | 3 | 10 | 23.5 | |
TU-BS-6/4HD | 6 | 4 | 4.3 | 6 | 4.1 | 9.5 | 21.5 |
TU-BS-6/5HD | 5 | 5.4 | 6 | 4.1 | 10 | 24.5 | |
TU-BS-6/6HD | 6 | 6.4 | 6 | 4.1 | 11 | 24.5 | |
TU-BS-6/8HD | 8 | 8.5 | 6 | 4.1 | 12.5 | 27 | |
TU-BS-6/10HD | 10 | 10.5 | 6 | 4.1 | 12.5 | 29 | |
TU-BS-10/5HD | 10 | 5/6 | 5.4/6.4 | 6.9 | 4.4 | 10.5 | 27 |
TU-BS-10/8HD | 8 | 8.5 | 6.9 | 4.4 | 14 | 35 | |
TU-BS-10/12HD | 12 | 12.8 | 6.9 | 4.4 | 18 | 39 | |
TU-BS-16/5HD | 16 | 5/6 | 5.4/6.4 | 8 | 5.6 | 11 | 29.5 |
TU-BS-16/8HD | 8 | 8.5 | 8 | 5.6 | 14 | 38 | |
TU-BS-16/10HD | 10 | 10.5 | 8 | 5.6 | 16 | 42 | |
TU-BS-16/12HD | 12 | 12.8 | 8 | 5.6 | 18 | 42 | |
TU-BS-25/5HD | 25 | 5/6/8 | 5.4/6.4/8.5 | 9.5 | 7 | 13.5 | 40 |
TU-BS-25/10HD | 10 | 10.5 | 9.5 | 7 | 16 | 44 | |
TU-BS-25/12HD | 12 | 12.8 | 9.5 | 7 | 18 | 44 | |
TU-BS-35/5HD | 5/6/8 | 5.4/6.4/8.5 | 11 | 8.2 | 15.5 | 41 | |
TU-BS-35/10HD | 35 | 10 | 10.5 | 11 | 8.2 | 15.5 | 45 |
TU-BS-35/12HD | 12 | 12.8 | 11 | 8.2 | 18 | 45 | |
TU-BS-35/14HD | 14 | 14.7 | 11 | 8.2 | 20 | 50 | |
TU-BS-50/5HD | 50 | 5/6/8 | 5.4/6.4/8.5 | 12.1 | 9.5 | 17.2 | 46 |
TU-BS-50/10HD | 10/12 | 10.5/12.8 | 12.1 | 9.5 | 17.2 | 50 | |
TU-BS-50/14HD | 14 | 14.7 | 12.1 | 9.5 | 20 | 55 | |
TU-BS-50/16HD | 16 | 16.7 | 12.1 | 9.5 | 22 | 55 | |
TU-BS-70/5HD | 70 | 5/6/8 | 5.4/6.4/8.5 | 15 | 11.5 | 21.2 | 48 |
TU-BS-70/10HD | 10/12 | 10.5/12.8 | 15 | 11.5 | 21.2 | 52 | |
TU-BS-70/14HD | 14/16 | 14.7/16.7 | 15 | 11.5 | 21.2 | 63 | |
TU-BS-95/8HD | 95 | 8/10/12 | 8.5/10.5/12.7 | 17 | 13.5 | 24.3 | 58 |
TU-BS-95/14HD | 14/16 | 14.7/16.7 | 17 | 13.5 | 24.3 | 69 | |
TU-BS-120/8HD | 120 | 8/10/12/14/16/20 | 8.5-20.7 | 19 | 15 | 27.2 | 73 |
TU-BS-150/8HD | 150 | 8/10/12/14/16/20 | 8.5-20.7 | 21 | 16.5 | 30 | 78 |
TU-BS-185/12HD | 185 | 12/14/16/20 | 12.8-20.7 | 23 | 18.5 | 33.5 | 82 |
TU-BS-240/10HD | 240 | 10/12/14/16/20 | 10.5-20.7 | 26 | 21 | 37.7 | 88 |
TU-BS-300/10HD | 300 | 10/12/14/16/20 | 10.5-20.7 | 28 | 23 | 41 | 97 |
TU-BS-400/10HD | 400 | 10/12/14/16/20 | 10.5-20.7 | 32 | 27 | 47.3 | 113 |
