BS-PA-FF
ES
4602900000
| Quantity: | |
|---|---|

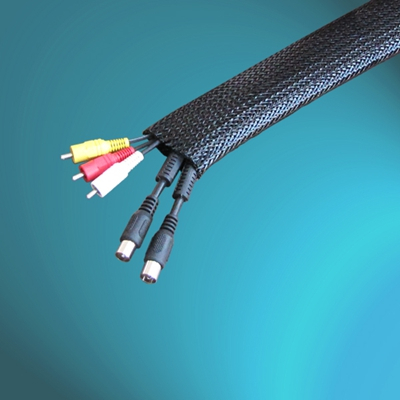

Flat Filament PA Braided Cable Sleeving
SPECIFICATIONS | ||||
MATERIAL: | POLYAMIDE PA66 FLAT FILAMENT | |||
COLOUR: | BLACK AND GREY | |||
FLAMMABILITY: | SELF-EXTINGUISHING TO UL94-V0, UL94-V2 | |||
WORK TEMP: | -60℃-160℃ | |||
MELTING POINT: | 256℃ | |||
STANDARD: | UL (File No. E317364) & RoHS & HALOGEN FREE | |||
FEATURE: | THE TOUGH AND STRONG NYLON 6.6 FLAT FILAMENTS PROVIDES STRONG ANTI-ABRASION PROPERTY. | |||
APPLICATION: | IDEAL FOR PROTECTING HYDRAULIC LINES, PIPES AND WIRES ON FORKLIFTS, WELDING MACHINES AND HEAVY EQUIPMENTS. | |||
EASE CODE | SIZE | EXPANDABLE RANGE | PACKING | |
(W) | min. (I) | max. (O) | m/roll | |
BS-PA-12FF | 12 | 9 | 16 | 100 |
BS-PA-19FF | 19 | 16 | 25 | 100 |
BS-PA-32FF | 32 | 25 | 42 | 100 |
BS-PA-45FF | 45 | 38 | 59 | 100 |
BS-PA-64FF | 64 | 45 | 83 | 100 |
