BS-PPS
ES
4602900000
| Quantity: | |
|---|---|

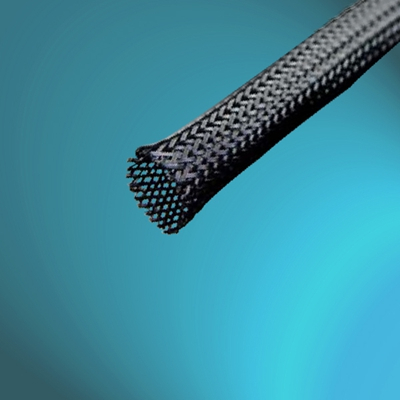

PPS Braided Cable Sleevings
SPECIFICATIONS | |||||
MATERIAL: | POLYPHENYLENE SULFIDE | ||||
COLOUR: | BLACK AND GREY | ||||
FLAMMABILITY: | SELF-EXTINGUISHING TO UL94-V0 | ||||
WORK TEMP: | -60℃-160℃ | ||||
MELTING POINT: | 256℃ | ||||
STANDARD: | UL (File No. E317364) & RoHS & HALOGEN FREE | ||||
FEATURE: | PPS MATERIAL HAS THE PROPERTY OF HIGH ABRASION RESISTANCE, CHEMICAL RESISTANCE AND HIGH TEMPERATURE STABILITY. IT ALSO HAS LOW MOISTURE ABSORPTION AND EXCELLENT DIMENSIONAL STABILITY FEATURES. | ||||
APPLICATION: | IDEAL FOR CABLES IN THE AUTOMOTIVE, RAILWAYS, AEROSPACE AND MILITARY APPLICATIONS WHERE GOOD CHARACTERISTICS OF FLAME RETARDANT AND HIGH TEMPERATURE RESISTANCE ARE REQUIRED. | ||||
EASE CODE | SIZE | EXPANDABLE RANGE | PACKING | ||
mm | inch | min. (I) | MAX. (O) | m/roll | |
BS-PPS-03ST | 3 | 1/8 | 1 | 6 | 1000 |
BS-PPS-06ST | 6 | 1/4 | 3 | 9 | 500 |
BS-PPS-08ST | 8 | 5/16 | 5 | 16 | 350 |
BS-PPS-10ST | 10 | 3/8 | 7 | 19 | 350 |
BS-PPS-12ST | 12 | 1/2 | 8 | 24 | 300 |
BS-PPS-16ST | 15 | 5/8 | 10 | 27 | 250 |
BS-PPS-19ST | 20 | 3/4 | 14 | 30 | 200 |
BS-PPS-25ST | 25 | 1 | 18 | 35 | 200 |
BS-PPS-32ST | 30 | 1-1/4 | 20 | 50 | 150 |
BS-PPS-38ST | 40 | 1-1/2 | 30 | 60 | 100 |
BS-PPS-45ST | 45 | 1-3/4 | 35 | 75 | 100 |
BS-PPS-50ST | 50 | 2 | 40 | 80 | 100 |
BS-PPS-64ST | 64 | 2-1/2 | 45 | 105 | 100 |
BS-PPS-76ST | 76 | 3 | 64 | 120 | 100 |
